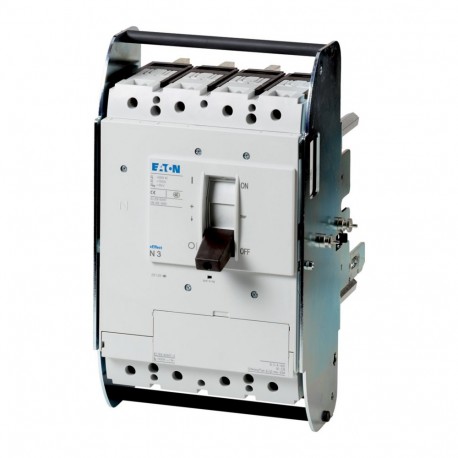

N3-4-400-AVE 110872 Y7-110872 EATON ELECTRIC Switch-disconnector 4p 400A + withdrawable unit
N3-4-400-AVE
110872
Y7-110872
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller N3-4-400-AVE 110872 Y7-110872 Eaton Electric Switch-disconnector 4p 400A + withdrawable unit provides modular circuit isolation with the convenience of a withdrawable chassis design. This configuration allows technicians to rack out the device safely during servicing without rewiring main busbars.
All pricing, availability, and lead times are confirmed per enquiry through a formal RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current at AC-23, 400 V (EF011777): 0 A
- Rated permanent current at AC-21, 400 V (EF009165): 0 A
- Rated operation power at AC-3, 400 V (EF001364): 0 kW
- Rated short-time withstand current lcw (EF007050): 12 kA
- Rated operation power at AC-23, 400 V (EF007027): 200 kW
- Switching power at 400 V (EF009166): 0 kW
- Conditioned rated short-circuit current Iq (EF001444): 0 kA
- Number of poles (EF001391): 4
More info
▲General specifications
IEC/EN 60947
Product specifications
Motor drive optional
Version as main switch
Version as maintenance-/service switch
Ground mounting
Intermediate mounting
Distribution board installation
Built-in device slide-in technique (withdrawable)
Damp heat, constant, to IEC 60068-2-78
300 V AC (between the auxiliary contacts)
Other
630 A (415 V AC-22/23A, making and breaking capacity)
IP20
IP40 (with insulating surround)
IP00 (terminations, phase isolator and band terminal)
Max. 10 segments of 32 mm x 1 mm + 5 segments of 32 mm x 1 mm at rear-side connection (punched)
Max. 8 segments of 24 mm x 1 mm (2x) at box terminal
10 segments of 50 mm x 1 mm (2x) at rear-side width extension
Max. 10 segments of 24 mm x 1 mm + 5 segments of 24 mm x 1 mm
Min. 6 segments of 16 mm x 0.8 mm at box terminal
2000 operations at 690 V AC-3
5000 operations at 415 V AC-1
3000 operations at 690 V AC-1
3000 operations at 400 V AC-3
3000 operations at 415 V AC-3
Voltage release optional
Interlockable
PN3(N3)-400…630: 630 AgGgL
100 kA at 400/415 V
100 kA at 400/415 V
80 kA at 690 V
Max. 10 mm x 50 mm (2x) at rear-side width extension
M10 at rear-side screw connection
300 mm² (2x) at rear-side width extension
16 mm² (1x) direct at switch rear-side connection
16 mm² (2x) direct at switch rear-side connection
16 mm² (1x) direct at switch rear-side connection
10 mm² - 16 mm² (2x) direct at switch rear-side connection
50 mm² - 240 mm² (2x) at 2-hole tunnel terminal
25 mm² - 120 mm² (2x) at box terminal
25 mm² - 120 mm² (1x) direct at switch rear-side connection
35 mm² - 240 mm² (1x) at box terminal
25 mm² - 185 mm² (1x) at 1-hole tunnel terminal
25 mm² - 120 mm² (2x) direct at switch rear-side connection
