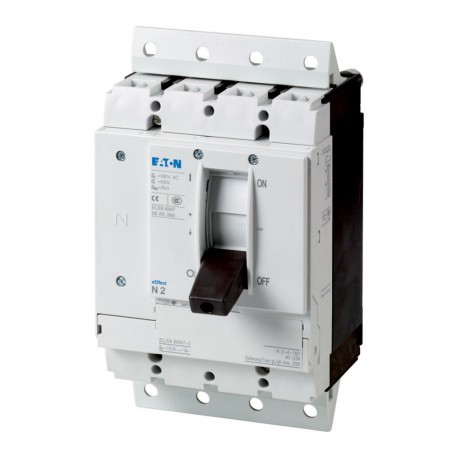

N2-4-160-SVE 113736 Y7-113736 EATON ELECTRIC Switch-disconnector 4p 160A +pull out
N2-4-160-SVE
113736
Y7-113736
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An EATON ELECTRIC Switch-disconnector 4p 160A +pull out functions as a central disconnecting and safety device within commercial and industrial electrical panels. It allows technicians to completely isolate loads from the mains supply, ensuring safe working conditions during equipment upkeep. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 160 A
- Rated permanent current at AC-23, 400 V (EF011777): 0 A
- Rated permanent current at AC-21, 400 V (EF009165): 0 A
- Rated operation power at AC-3, 400 V (EF001364): 0 kW
- Rated short-time withstand current lcw (EF007050): 3.5 kA
- Rated operation power at AC-23, 400 V (EF007027): 90 kW
- Switching power at 400 V (EF009166): 0 kW
- Conditioned rated short-circuit current Iq (EF001444): 0 kA
More info
▲General specifications
IEC
Product specifications
Version as main switch
Version as emergency stop installation
Motor drive optional
Distribution board installation
Ground mounting
Plug-in unit
Intermediate mounting
Damp heat, constant, to IEC 60068-2-78
500 V AC (between auxiliary contacts and main contacts)
Other
160 A (690 V AC-22/23A, making and breaking capacity)
IP40 (with insulating surround)
IP20
IP00 (terminations, phase isolator and band terminal)
Min. 2 segments of 9 mm x 0.8 mm at box terminal
Max. 10 segments of 24 mm x 0.8 mm at rear-side connection (punched)
Max. 8 segments of 15.5 mm x 0.8 mm (2x) at box terminal
Max. 10 segments of 16 mm x 0.8 mm at box terminal
6000 operations at 400 V AC-3
7500 operations at 400 V AC-1
6000 operations at 415 V AC-3
5000 operations at 690 V AC-1
7500 operations at 415 V AC-1
Disconnectors/main switches
Voltage release optional
100 kA at 400/415 V
80 kA at 690 V
80 kA at 690 V
100 kA at 400/415 V
Min. 16 mm x 5 mm direct at switch rear-side connection
M8 at rear-side screw connection
10 mm² - 16 mm² (1x) direct at switch rear-side connection
6 mm² - 16 mm² (2x) direct at switch rear-side connection
10 mm² - 16 mm² (1x) at box terminal
6 mm² - 16 mm² (2x) at box terminal
10 mm² - 16 mm² (1x) direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
25 mm² - 185 mm² (1x) at 1-hole tunnel terminal
25 mm² - 185 mm² (1x) at box terminal
25 mm² - 185 mm² (1x) direct at switch rear-side connection
25 mm² - 70 mm² (2x) direct at switch rear-side connection
