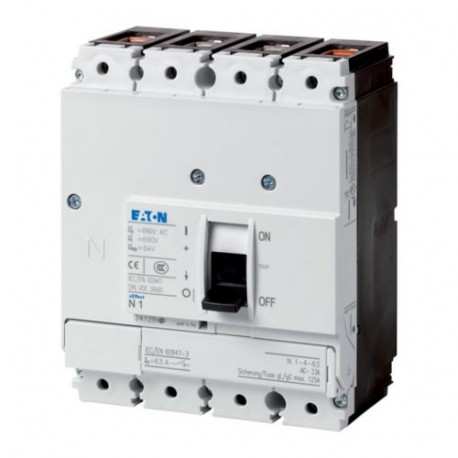

PN1-4-160 281253 Y7-281253 EATON ELECTRIC Switch-disconnector 4p, 160A
PN1-4-160
281253
Y7-281253
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller PN1-4-160 switch-disconnector is a four-pole switching device engineered to safely isolate electrical circuits and disconnect power during maintenance or emergency procedures. In industrial installations, switch-disconnectors provide reliable manual interruption of load currents and establish a visible break point to protect operators.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 160 A
- Rated permanent current at AC-23, 400 V (EF011777): 0 A
- Rated permanent current at AC-21, 400 V (EF009165): 0 A
- Rated operation power at AC-3, 400 V (EF001364): 0 kW
- Rated short-time withstand current lcw (EF007050): 2 kA
- Rated operation power at AC-23, 400 V (EF007027): 90 kW
- Switching power at 400 V (EF009166): 0 kW
- Conditioned rated short-circuit current Iq (EF001444): 0 kA
More info
▲General specifications
IEC/EN 60947
Product specifications
Version as emergency stop installation
Version as maintenance-/service switch
Built-in device fixed built-in technique
Fixed
Intermediate mounting
Distribution board installation
Damp heat, cyclic, to IEC 60068-2-30
500 V AC (between auxiliary contacts and main contacts)
Other
160 A (690 V AC-22/23A, making and breaking capacity)
IP66 (with door coupling rotary handle)
IP20
IP10 (tunnel terminal)
Max. 9 segments of 9 mm x 0.8 mm at box terminal
1000 operations at 400 V AC-23A
7500 operations at 400 V AC-1
1000 operations at 415 V AC-23A
5000 operations at 690 V AC-1
7500 operations at 415 V AC-1
Disconnectors/main switches
80 kA at 690 V
160 gR
160 gR
100 kA at 400/415 V
Min. 12 mm x 5 mm direct at switch rear-side connection
Max. 16 mm x 5 mm direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
10 mm² - 16 mm² (1x) direct at switch rear-side connection
10 mm² - 16 mm² (1x) at box terminal
6 mm² - 16 mm² (2x) at box terminal
16 mm² (1x) at tunnel terminal
10 mm² - 16 mm² (2x) direct at switch rear-side connection
6 mm² - 25 mm² (2x) at box terminal
25 mm² - 70 mm² (1x) direct at switch rear-side connection
Terminal capacity hint: Up to 95 mm² can be connected depending on the cable manufacturer
25 mm² - 95 mm² (1x) at 1-hole tunnel terminal
10 mm² - 70 mm² (1x) at box terminal
