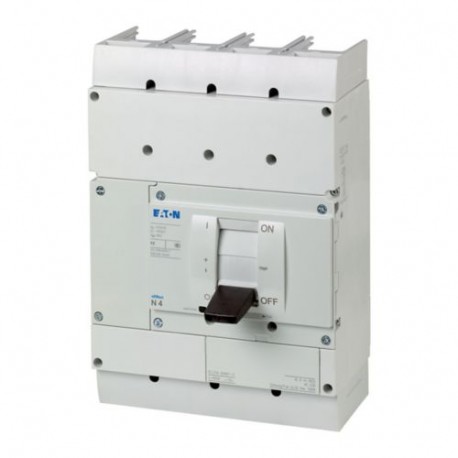

N4-4-1250 266031 Y7-266031 EATON ELECTRIC Switch-disconnector 4p 1250A BG4
N4-4-1250
266031
Y7-266031
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller N4-4-1250 is a high-amperage switch-disconnector built for heavy industrial electrical distribution networks. These large-scale isolation devices protect facility infrastructure by providing safe, reliable load-breaking capacity for high-power main incoming lines.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current at AC-23, 400 V (EF011777): 0 A
- Rated permanent current at AC-21, 400 V (EF009165): 0 A
- Rated operation power at AC-3, 400 V (EF001364): 0 kW
- Rated short-time withstand current lcw (EF007050): 25 kA
- Rated operation power at AC-23, 400 V (EF007027): 710 kW
- Switching power at 400 V (EF009166): 0 kW
- Conditioned rated short-circuit current Iq (EF001444): 0 kA
- Number of poles (EF001391): 4
More info
▲General specifications
IEC/EN 60947
Product specifications
Version as emergency stop installation
Motor drive optional
Version as main switch
Fixed
Built-in device fixed built-in technique
Ground mounting
Distribution board installation
Damp heat, constant, to IEC 60068-2-78
500 V AC (between auxiliary contacts and main contacts)
Other
1600 A (415 V AC-22/23A, making and breaking capacity)
IP40 (with insulating surround)
IP66 (with door coupling rotary handle)
IP00 (terminations, phase isolator and band terminal)
Min. 10 segments of 50 mm x 1 mm (2x) at rear-side connection (punched)
Max. 10 segments of 32 mm x 1 mm (2x) at flat conductor terminal
10 segments of 50 mm x 1 mm (2x) at 1-hole module plate
Min. 6 segments of 16 mm x 0.8 mm at flat conductor terminal
10 segments of 80 mm x 1 mm (2x) at rear-side width extension
3000 operations at 415 V AC-1
2000 operations at 400 V AC-3
2000 operations at 690 V AC-1
1000 operations at 690 V AC-3
2000 operations at 415 V AC-3
Interlockable
Disconnectors/main switches
N4-630…1600: 2 x 800 AgGgL
100 kA at 400/415 V
100 kA at 400/415 V
80 kA at 690 V
Min. 60 mm x 10 mm at rear-side width extension
Max. 80 mm x 10 mm (2x) at rear-side width extension
M10 at rear-side screw connection
Max. 50 mm x 10 mm (2x) direct at switch rear-side connection
Max. 50 mm x 10 mm (2x) at rear-side 1-hole module plate
50 mm x 10 mm (2x) at rear-side 2-hole module plate
Min. 25 mm x 5 mm at rear-side 1-hole module plate
70 mm² - 185 mm² (2x) at rear-side 1-hole module plate
300 mm² (4x) at rear-side width extension
50 mm² (4x) at rear-side 2-hole module plate
50 mm² - 240 mm² (4x) at 4-hole tunnel terminal
185 mm² - 240 mm² (1x) at rear-side 1-hole module plate
35 mm² - 185 mm² (4x) at rear-side 2-hole module plate
70 mm² - 240 mm² (6x) at rear-side width extension
50 mm² - 185 mm² (4x) direct at switch rear-side connection
