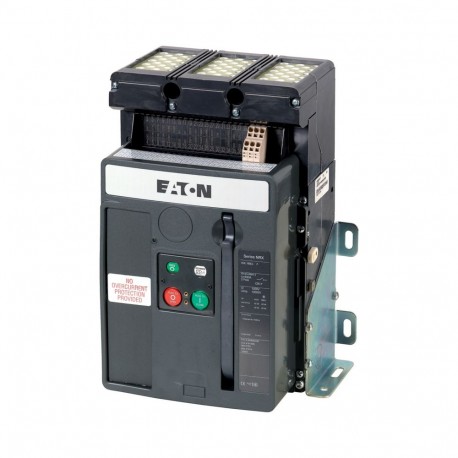

INX16B3-06F 123361 EATON ELECTRIC Switch-disconnector, 3p, 630A, fixed
INX16B3-06F
123361
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed to handle high operational currents, the Eaton Moeller INX16B3-06F switch-disconnector provides dependable circuit isolation for large commercial power networks. Fixed disconnectors of this caliber maintain system integrity during routine maintenance and emergency shutdowns. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current = rated uninterrupted current: I n = I u
- Making capacity Icm to 440 V 50/60 Hz: I cm
- t = 1 s: I cw
- Storage: ϑ
- Rated operational current for specified heat dissipation: I n
- Equipment heat dissipation, current-dependent: P vid
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Rated permanent current Iu (EF001389): 630 A
- Number of poles (EF001391): 3
- Motor drive optional (EF007386): No
- Motor drive integrated (EF006697): No
- Voltage release optional (EF007491): No
More info
▲Product range | Air circuit-breakers/switch-disconnectors | ||
Product range | Open switch-disconnectors | ||
Current Range | Up to 4000 A | ||
Protective function | Switch disconnector | ||
Installation type | Fixed | ||
Construction size | INX16 | ||
Release system | without releases | ||
Standard/Approval | IEC | ||
Number of poles | 3 pole | ||
Degree of Protection | IP20, IP55 with protective cover, IP41 door sealing frame | ||
| optionally fittable by user with comprehensive accessories | |||
Rated current = rated uninterrupted current | In= Iu | A | 630 |
Making capacity Icm to 440 V 50/60 Hz | Icm | kA | 88 |
t = 1 s | Icw | kA | 42 |
| Notes Note ???? | |||
| General | |||
Standards | IEC/EN 60947 | ||
Ambient temperature | |||
Storage | ϑ | °C | -40 - +70 |
Ambient temperature | °C | -25 - +70 | |
Mounting position | |||
Technical data for design verification | |||
Rated operational current for specified heat dissipation | In | A | 630 |
Equipment heat dissipation, current-dependent | Pvid | W | 36 |
Operating ambient temperature min. | °C | -25 | |
Operating ambient temperature max. | °C | 70 | |
IEC/EN 61439 design verification | |||
10.2 Strength of materials and parts | |||
10.2.2 Corrosion resistance | Meets the product standard's requirements. | ||
10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. | ||
10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. | ||
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects | Meets the product standard's requirements. | ||
10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. | ||
10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.2.7 Inscriptions | Meets the product standard's requirements. | ||
10.3 Degree of protection of ASSEMBLIES | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.4 Clearances and creepage distances | Meets the product standard's requirements. | ||
10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. | ||
10.8 Connections for external conductors | Is the panel builder's responsibility. | ||
10.9 Insulation properties | |||
10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. | ||
10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. | ||
10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. | ||
10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. | ||
10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. | ||
10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. | ||
10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. | ||
| Low-voltage industrial components (EG000017) / Switch disconnector (EC000216) | |||
| Electric engineering, automation, process control engineering / Low-voltage switch technology / Off-load switch, circuit breaker, control switch / Switch disconnector ([email protected] [AKF060010]) | |||
Version as main switch | Yes | ||
Version as maintenance-/service switch | No | ||
Version as safety switch | No | ||
Version as emergency stop installation | No | ||
Version as reversing switch | No | ||
Max. rated operation voltage Ue AC | V | 690 | |
Rated operating voltage | V | 690 - 690 | |
Rated permanent current Iu | A | 630 | |
Rated permanent current at AC-21, 400 V | A | 0 | |
Rated operation power at AC-3, 400 V | kW | 0 | |
Rated short-time withstand current lcw | kA | 42 | |
Rated operation power at AC-23, 400 V | kW | 0 | |
Switching power at 400 V | kW | 0 | |
Conditioned rated short-circuit current Iq | kA | 88 | |
Number of poles | 3 | ||
Number of auxiliary contacts as normally closed contact | 0 | ||
Number of auxiliary contacts as normally open contact | 0 | ||
Number of auxiliary contacts as change-over contact | 2 | ||
Motor drive optional | Yes | ||
Motor drive integrated | No | ||
Voltage release optional | Yes | ||
Device construction | Built-in device fixed built-in technique | ||
Suitable for ground mounting | Yes | ||
Suitable for front mounting 4-hole | No | ||
Suitable for front mounting center | No | ||
Suitable for distribution board installation | Yes | ||
Suitable for intermediate mounting | No | ||
Colour control element | Green | ||
Type of control element | Push button | ||
Interlockable | Yes | ||
Type of electrical connection of main circuit | Rail connection | ||
Degree of protection (IP), front side | IP20 | ||
