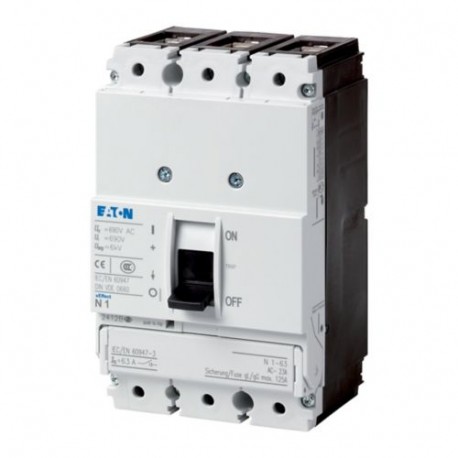

N1-125 259145 Y7-259145 EATON ELECTRIC Switch-disconnector 3p 125A BG1
N1-125
259145
Y7-259145
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller switch-disconnector (part number N1-125) functions as a robust mechanical disconnecting device for safely cutting off power to commercial and industrial machinery. These units are commonly installed as main or emergency disconnects near control panels to ensure safe maintenance practices. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 125 A
- Rated permanent current at AC-23, 400 V (EF011777): 0 A
- Rated permanent current at AC-21, 400 V (EF009165): 0 A
- Rated operation power at AC-3, 400 V (EF001364): 0 kW
- Rated short-time withstand current lcw (EF007050): 2 kA
- Rated operation power at AC-23, 400 V (EF007027): 55 kW
- Switching power at 400 V (EF009166): 0 kW
- Conditioned rated short-circuit current Iq (EF001444): 0 kA
More info
▲General specifications
IEC/EN 60947
Product specifications
Version as emergency stop installation
Version as main switch
Built-in device fixed built-in technique
Ground mounting
Intermediate mounting
Distribution board installation
Damp heat, constant, to IEC 60068-2-78
500 V AC (between auxiliary contacts and main contacts)
Other
160 A (415 V AC-22/23A, making and breaking capacity)
IP20
IP66 (with door coupling rotary handle)
IP00 (terminations, phase isolator and band terminal)
Max. 9 segments of 9 mm x 0.8 mm at box terminal
1000 operations at 415 V AC-23A
1000 operations at 400 V AC-23A
10000 operations at 400 V AC-1
1000 operations at 690 V AC-23A
10000 operations at 415 V AC-1
Disconnectors/main switches
Interlockable
125 gG/gL
100 kA at 400/415 V
125 gG/gL
100 kA at 400/415 V
M6 at rear-side screw connection
Max. 16 mm x 5 mm direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
10 mm² - 16 mm² (1x) at box terminal
10 mm² - 16 mm² (1x) direct at switch rear-side connection
6 mm² - 16 mm² (2x) at box terminal
10 mm² - 16 mm² (2x) direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
Terminal capacity hint: Up to 95 mm² can be connected depending on the cable manufacturer
25 mm² - 70 mm² (1x) direct at switch rear-side connection
10 mm² - 70 mm² (1x) at box terminal
25 mm² - 95 mm² (1x) at 1-hole tunnel terminal
25 mm² (2x) direct at switch rear-side connection
