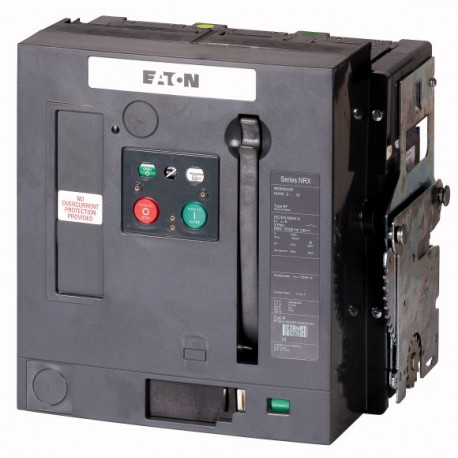

INX40N3-12W 150079 RES8133WSW0NMNN2MNDX EATON ELECTRIC Switch-disconnector, 3p, 1250 A, withdrawable
INX40N3-12W
150079
RES8133WSW0NMNN2MNDX
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
INX40N3-12W is an Eaton Moeller switch-disconnector designed to safely interrupt electrical circuits and provide reliable load isolation in industrial power distribution panels. Switch-disconnectors of this type are routinely integrated into electrical distribution systems to establish a visible break point and ensure safe de-energization during maintenance or emergency procedures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 1250 A
- Rated permanent current at AC-21, 400 V (EF009165): 0 A
- Rated operation power at AC-3, 400 V (EF001364): 0 kW
- Rated short-time withstand current lcw (EF007050): 85 kA
- Rated operation power at AC-23, 400 V (EF007027): 0 kW
- Switching power at 400 V (EF009166): 0 kW
- Conditioned rated short-circuit current Iq (EF001444): 187 kA
- Number of poles (EF001391): 3
- Motor drive optional (EF007386): Yes
