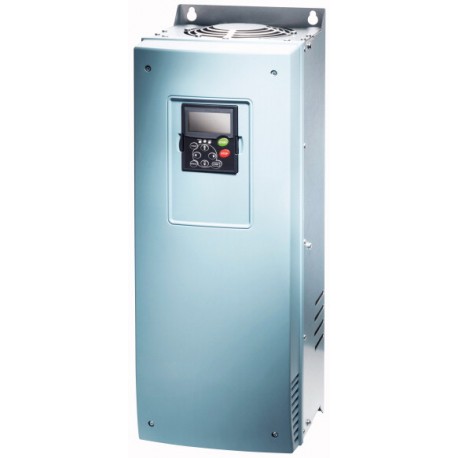

SVX030A1-5A4B2 180550 EATON ELECTRIC Variable frequency drive
SVX030A1-5A4B2
180550
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Eaton Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Precise management of motor speed and output parameters is delivered by the Eaton Moeller SVX030A1-5A4B2 variable frequency drive. Frequency converters find widespread use across industrial infrastructure to regulate pumps, fans, and conveyor systems for optimal performance and energy savings.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 525 V
- Mains frequency (EF006783): 50/60 Hz
- Max. output frequency (EF007350): 320 Hz
- Number of analogue outputs (EF001995): 1
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): No
- Supporting protocol for TCP/IP (EF003050): No
- Supporting protocol for PROFIBUS (EF003052): No
- Supporting protocol for CAN (EF003053): No
- Supporting protocol for INTERBUS (EF003054): No
- Supporting protocol for ASI (EF003051): No
- Supporting protocol for KNX (EF003055): No
- Supporting protocol for Modbus (EF003057): No
- Supporting protocol for Data-Highway (EF003058): No
- Supporting protocol for DeviceNet (EF003059): No
- Supporting protocol for SUCONET (EF003060): No
More info
▲Delivery program
690 V AC, 3-phase
690 V AC, 3-phase
PROFINET
EtherCAT
EtherNet/IP
LonWorks
CANopen®
DeviceNet
Modbus-TCP
Modbus-RTU
BACnet MS/TP
Brake chopper
OLED display
Additional PCB protection
Technical data
EMV requirements: IEC/EN 61800-3
Safety requirements: IEC/EN 61800-5-1
above 1000 m with 1 % performance reduction per 100 m
max. 3000 m m
690 V AC, 3-phase
690 V AC, 3-phase
adjustable 1 - 6 kHz
sensorless vector control (SLV)
Brake chopper
OLED display
Additional PCB protection
