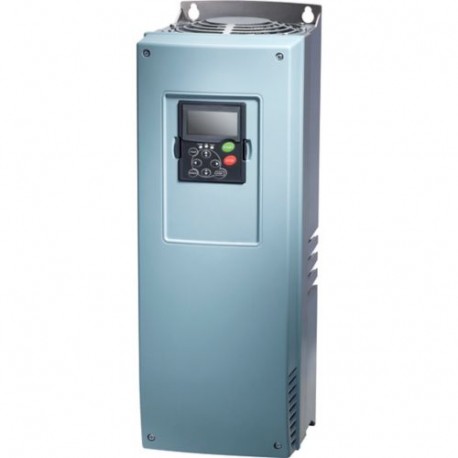

SVX015A1-5A4B2 180544 EATON ELECTRIC Variable frequency drive
SVX015A1-5A4B2
180544
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Eaton Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller SVX015A1-5A4B2 is a variable frequency drive engineered to regulate motor speed and torque in industrial machinery. Inverter drives provide precise control over AC motors, optimizing energy consumption and reducing mechanical wear across various automated processes.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 525 V
- Mains frequency (EF006783): 50/60 Hz
- Max. output frequency (EF007350): 320 Hz
- Number of analogue outputs (EF001995): 1
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): No
- Supporting protocol for TCP/IP (EF003050): No
- Supporting protocol for PROFIBUS (EF003052): No
- Supporting protocol for CAN (EF003053): No
- Supporting protocol for INTERBUS (EF003054): No
- Supporting protocol for ASI (EF003051): No
- Supporting protocol for KNX (EF003055): No
- Supporting protocol for Modbus (EF003057): No
- Supporting protocol for Data-Highway (EF003058): No
- Supporting protocol for DeviceNet (EF003059): No
- Supporting protocol for SUCONET (EF003060): No
More info
▲General specifications
CSA Class No.: 3211-06
IEC/EN 61800-2
UL File No.: E134360
UL report applies to both US and Canada
IEC/EN 61800-3
CUL
UL 508C
IEC/EN61800-5
CE marking
UL
IEC/EN 61800-5-1
RoHS, ISO 9001
UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8
UL Listed
Certified by UL for use in Canada
RCM
CSA-C22.2 No. 14
DNV
General
DeviceNet, optional
EtherCAT, optional
Modbus-TCP, optional
Ethernet IP, optional
Modbus-RTU, optional
LonWorks, optional
CANopen®, optional
PROFIBUS-DP
BACnet MS/TP, optional
NEMA Other
Radio interference suppression filter
IGBT inverter
Brake chopper
Additional PCB protection
OLED display
Climatic environmental conditions
Above 1000 m with 1 % performance reduction per 100 m
Max. 3000 m
Main circuit
Sensorless vector control (SLV)
690 V AC, 3-phase
690 V AC, 3-phase
