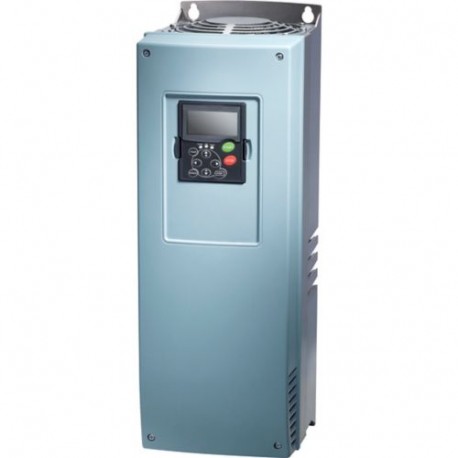

SVX010A1-5A4N2 180543 EATON ELECTRIC Variable frequency drive
SVX010A1-5A4N2
180543
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Eaton Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller variable frequency drive, reference SVX010A1-5A4N2, is a power conversion device utilized to adjust the rotational speed of standard alternating current induction motors.
System integrators deploy these electronic controllers to manage heavy-duty mechanical loads, optimize fluid dynamics in pumping systems, and reduce energy consumption. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 525 V
- Mains frequency (EF006783): 50/60 Hz
- Max. output frequency (EF007350): 320 Hz
- Number of analogue outputs (EF001995): 1
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): No
- Supporting protocol for TCP/IP (EF003050): No
- Supporting protocol for PROFIBUS (EF003052): No
- Supporting protocol for CAN (EF003053): No
- Supporting protocol for INTERBUS (EF003054): No
- Supporting protocol for ASI (EF003051): No
- Supporting protocol for KNX (EF003055): No
- Supporting protocol for Modbus (EF003057): No
- Supporting protocol for Data-Highway (EF003058): No
- Supporting protocol for DeviceNet (EF003059): No
- Supporting protocol for SUCONET (EF003060): No
More info
▲General specifications
IEC/EN 61800-2
CE marking
CUL
CSA-C22.2 No. 14
IEC/EN 61800-5-1
UL 508C
CSA Class No.: 3211-06
IEC/EN 61800-3
UL File No.: E134360
IEC/EN61800-5
RCM
Certified by UL for use in Canada
CE
UL Listed
RoHS, ISO 9001
UL
UL report applies to both US and Canada
UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8
General
PROFIBUS-DP
CANopen®, optional
Modbus-RTU, optional
DeviceNet, optional
PROFINET, optional
EtherCAT, optional
LonWorks, optional
Modbus-TCP, optional
Ethernet IP, optional
NEMA Other
Additional PCB protection
Radio interference suppression filter
OLED display
IGBT inverter
Climatic environmental conditions
Max. 3000 m
Max. 1000 m
Main circuit
Sensorless vector control (SLV)
690 V AC, 3-phase
600 V AC, 3-phase
