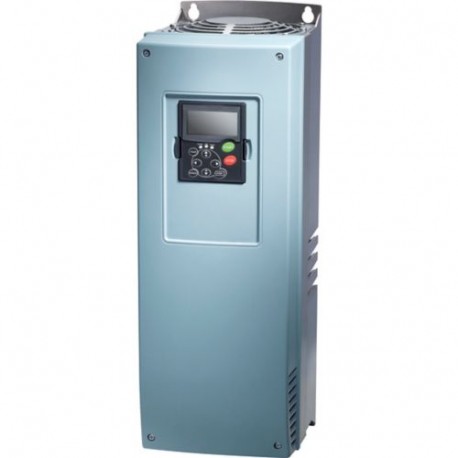

SVX010A1-5A4B2 180542 EATON ELECTRIC Variable frequency drive
SVX010A1-5A4B2
180542
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Eaton Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller SVX010A1-5A4B2 variable frequency drive is engineered to manage motor speeds in heavy-duty industrial systems and fluid handling equipment. Variable frequency drives allow operators to adjust motor performance dynamically, resulting in substantial energy savings and reduced mechanical wear.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 525 V
- Mains frequency (EF006783): 50/60 Hz
- Max. output frequency (EF007350): 320 Hz
- Number of analogue outputs (EF001995): 1
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): No
- Supporting protocol for TCP/IP (EF003050): No
- Supporting protocol for PROFIBUS (EF003052): No
- Supporting protocol for CAN (EF003053): No
- Supporting protocol for INTERBUS (EF003054): No
- Supporting protocol for ASI (EF003051): No
- Supporting protocol for KNX (EF003055): No
- Supporting protocol for Modbus (EF003057): No
- Supporting protocol for Data-Highway (EF003058): No
- Supporting protocol for DeviceNet (EF003059): No
- Supporting protocol for SUCONET (EF003060): No
More info
▲General specifications
RCM
CSA-C22.2 No. 14
UL report applies to both US and Canada
CE marking
IEC/EN 61800-3
CE
UL 508C
CUL
IEC/EN 61800-2
UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8
IEC/EN 61800-5-1
Certified by UL for use in Canada
CSA Class No.: 3211-06
UL File No.: E134360
RoHS, ISO 9001
DNV
UL
IEC/EN61800-5
General
Modbus-TCP, optional
EtherCAT, optional
LonWorks, optional
CANopen®, optional
DeviceNet, optional
Ethernet IP, optional
PROFINET, optional
Modbus-RTU, optional
BACnet MS/TP, optional
NEMA Other
IGBT inverter
OLED display
Radio interference suppression filter
Internal DC link
Brake chopper
Climatic environmental conditions
Max. 1000 m
Above 1000 m with 1 % performance reduction per 100 m
Main circuit
Sensorless vector control (SLV)
600 V AC, 3-phase
600 V AC, 3-phase
