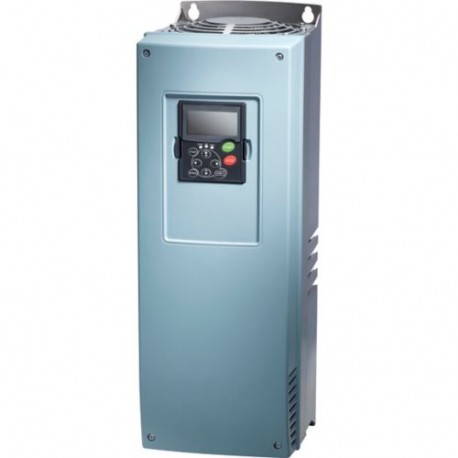

SVX003A1-5A4N2 180535 EATON ELECTRIC Variable frequency drive
SVX003A1-5A4N2
180535
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Eaton Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller variable frequency drive regulates the rotational velocity of electric motors by adjusting supplied electrical frequency and voltage. Engineers utilize these electronic drives to optimize processes in pumps, compressors, and heavy manufacturing equipment.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage (EF006780): 525 V
- Mains frequency (EF006783): 50/60 Hz
- Max. output frequency (EF007350): 320 Hz
- Number of analogue outputs (EF001995): 1
- With control element (EF001538): No
- Application in industrial area permitted (EF007294): No
- Supporting protocol for TCP/IP (EF003050): No
- Supporting protocol for PROFIBUS (EF003052): No
- Supporting protocol for CAN (EF003053): No
- Supporting protocol for INTERBUS (EF003054): No
- Supporting protocol for ASI (EF003051): No
- Supporting protocol for KNX (EF003055): No
- Supporting protocol for Modbus (EF003057): No
- Supporting protocol for Data-Highway (EF003058): No
- Supporting protocol for DeviceNet (EF003059): No
- Supporting protocol for SUCONET (EF003060): No
More info
▲General specifications
UL Category Control No.: NMMS, NMMS2, NMMS7. NMMS8
UL report applies to both US and Canada
CSA Class No.: 3211-06
RoHS, ISO 9001
UL
RCM
UL File No.: E134360
IEC/EN 61800-3
IEC/EN 61800-5-1
DNV
IEC/EN 61800-2
UL Listed
CE
CE marking
Certified by UL for use in Canada
UL 508C
CSA-C22.2 No. 14
IEC/EN61800-5
General
PROFIBUS-DP
CANopen®, optional
BACnet MS/TP, optional
PROFINET, optional
LonWorks, optional
Ethernet IP, optional
Modbus-TCP, optional
Modbus-RTU, optional
DeviceNet, optional
NEMA Other
IGBT inverter
OLED display
Radio interference suppression filter
Additional PCB protection
Climatic environmental conditions
Above 1000 m with 1 % performance reduction per 100 m
Max. 3000 m
Main circuit
U/f control
600 V AC, 3-phase
690 V AC, 3-phase
