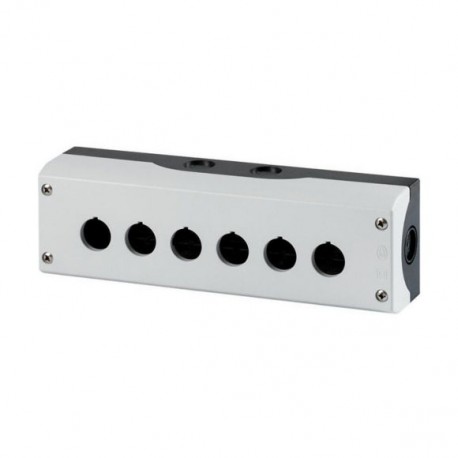

M22-I6 216540 Y7-216540 EATON ELECTRIC Surface mounting enclosure, 6 mounting locations
M22-I6
216540
Y7-216540
EATON - MOELLER
1 Pcs.
Surface mounting enclosure, 6 mounting locations
M22-I6
Eaton Moeller® series M22 Surface mounting enclosure, 6 mounting locations
Surface mounting enclosure, Housing: Insulated material, With high-grade steel screws, Number of locations: 6, Cable entry: rear: 2 x M20, at top: 2 x M20, lateral: 2 x M20/M25 (1 x each side), Degree of Protection: IP66, Color RAL Value: RAL 7035, Color: Enclosure base anthracite, Connection to SmartWire-DT: no, For use with: (Illuminated) pushbuttons, (Illuminated) selector switches, Key-operated pushbuttons, Indicator light, controlled stop/emergency-stop buttons with yellow label
Automation > Enclosure for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Accessory Surface mounting enclosure
Catalog Number
216540
Model Code
M22-I6
EAN
4015082165406
Product Length/Depth
80 mm
Product Height
56 mm
Product Width
252 mm
Product Weight
0.362 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 94-91
UL 508
CSA Std. C22.2 No. 14-05
IEC 60947-5
EN 60947-5
VDE
CSA File No.: 012528
CSA Class No.: 3211-03
UL
UL Category Control No.: NKCR
IEC/EN 60947-5
CE
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CSA
UL File No.: E29184
UL 508
CSA Std. C22.2 No. 14-05
IEC 60947-5
EN 60947-5
VDE
CSA File No.: 012528
CSA Class No.: 3211-03
UL
UL Category Control No.: NKCR
IEC/EN 60947-5
CE
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CSA
UL File No.: E29184
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 6 |
| Construction type housing (EF004008) | Surface mounting housing |
| Housing material (EF001596) | Plastic |
| Housing material quality (EF024143) | Other |
| Diameter openings (EF000243) | 22.5 mm |
| Colour housing cover (EF001373) | Grey |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 3R |
| Width (EF000008) | 252 mm |
| Height (EF000040) | 56 mm |
| Depth (EF000049) | 80 mm |
