EATON - MOELLER M22-I2 M22-I2 216537 Y7-216537 EATON ELECTRIC Surface mounting enclosure, 2 mounting locations View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-I2 216537 Y7-216537 EATON ELECTRIC Surface mounting enclosure, 2 mounting locations

M22-I2

216537

Y7-216537

EATON - MOELLER

1 Pcs.

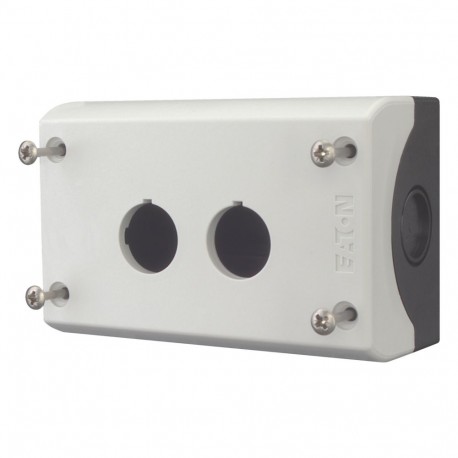

Surface mounting enclosure, 2 mounting locations M22-I2 Eaton Moeller® series M22 Surface mounting enclosure, 2 mounting locations Surface mounting enclosure, Housing: Insulated material, With high-grade steel screws, Number of locations: 2, Cable entry: rear: 2 x M20, at top: 1 x M20, lateral: 2 x M20/M25 (1 x each side), Degree of Protection: IP66, IP67, IP69K, Color RAL Value: RAL 7035, Color: Enclosure base anthracite, Connection to SmartWire-DT: no, For use with: (Illuminated) pushbuttons, (Illuminated) selector switches, Key-operated pushbuttons, Indicator light, controlled stop/emergency-stop buttons with yellow label

Automation > Enclosure for control circuit devices
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Surface mounting enclosure from Eaton Moeller, part number M22-I2, designed to house control and signaling devices in industrial environments. Enclosures of this type protect internal pushbuttons and selector switches from physical damage and environmental exposure while providing secure surface-mounted installation points on machinery or control panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Product Name: Eaton Moeller® series M22 surface mounting enclosure
  • Catalog Number: 216537
  • Model Code: M22-I2
  • EAN: 4015082165376
  • Product Length/Depth: 80 mm
  • Product Height: 56 mm
  • Product Width: 120 mm
  • Product Weight: 0.197 kg
  • 10.2.2 Corrosion resistance: Meets the product standard's requirements.
  • 10.2.3.1 Verification of thermal stability of enclosures: Meets the product standard's requirements.
  • 10.2.4 Resistance to ultra-violet (UV) radiation: Please enquire
  • 10.2.5 Lifting: Does not apply, since the entire switchgear needs to be evaluated.
  • 10.2.6 Mechanical impact: Does not apply, since the entire switchgear needs to be evaluated.
  • 10.2.7 Inscriptions: Meets the product standard's requirements.
  • 10.3 Degree of protection of assemblies: Does not apply, since the entire switchgear needs to be evaluated.
  • 10.4 Clearances and creepage distances: Meets the product standard's requirements.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 surface mounting enclosure
Catalog Number
216537
Model Code
M22-I2
EAN
4015082165376
Product Length/Depth
80 mm
Product Height
56 mm
Product Width
120 mm
Product Weight
0.197 kg
Certifications
UL 508
CSA File No.: 012528
CSA
CE
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL
UL File No.: E29184
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05

Product specifications

10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
High-grade steel screws
Connection to SmartWire-DT
No
Enclosure material
Plastic
Enclosure type
Surface mounting housing
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Force for positive opening - min
0 N
Number of command positions
2
Number of locations
2
Enclosure color
Gray
Material quality
Other
Opening diameter
22.5 mm
RAL-number
7035
Degree of protection
IP67/IP69K
NEMA 4X
Knockouts
1 x M20 (cable entry knockout at the top)
2 x M20/25 (cable entry knockout at the side, 1 x each side)
2 x M20 (cable entry knockouts at the rear)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
