View larger
Images are for illustrative purposes only. Please refer to data sheet for details

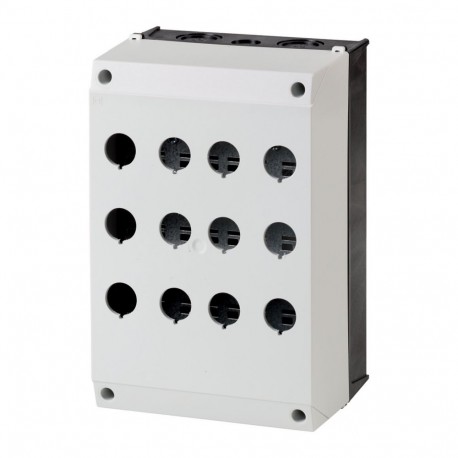

M22-I12 222688 Y7-222688 EATON ELECTRIC Surface mounting enclosure, 12 mounting locations
M22-I12
222688
Y7-222688
EATON - MOELLER
1 Pcs.
Surface mounting enclosure, 12 mounting locations
M22-I12
Eaton Moeller® series M22 Surface mounting enclosure, 12 mounting locations
Surface mounting enclosure, Housing: Insulated material, With high-grade steel screws, Number of locations: 12, Degree of Protection: IP66, Color RAL Value: RAL 7035, Color: Enclosure base anthracite, Connection to SmartWire-DT: no, For use with: 12 x 22.5, For use with: (Illuminated) pushbuttons, (Illuminated) selector switches, Key-operated pushbuttons, Indicator light, controlled stop/emergency-stop buttons with yellow label
Automation > Enclosure for control circuit devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Accessory Surface mounting enclosure
Catalog Number
222688
Model Code
M22-I12
EAN
4015082226886
Product Length/Depth
240 mm
Product Height
125 mm
Product Width
160 mm
Product Weight
1.301 kg
Certifications
CSA File No.: 012528
IEC/EN 60947-5
UL
CSA Class No.: 3211-03
UL 508
UL File No.: E29184
CE
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
CSA
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL
CSA Class No.: 3211-03
UL 508
UL File No.: E29184
CE
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
CSA
CSA-C22.2 No. 94-91
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 12 |
| Construction type housing (EF004008) | Surface mounting housing |
| Housing material (EF001596) | Plastic |
| Housing material quality (EF024143) | Other |
| Diameter openings (EF000243) | 22.5 mm |
| Colour housing cover (EF001373) | Grey |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 3R |
| Width (EF000008) | 160 mm |
| Height (EF000040) | 125 mm |
| Depth (EF000049) | 240 mm |
