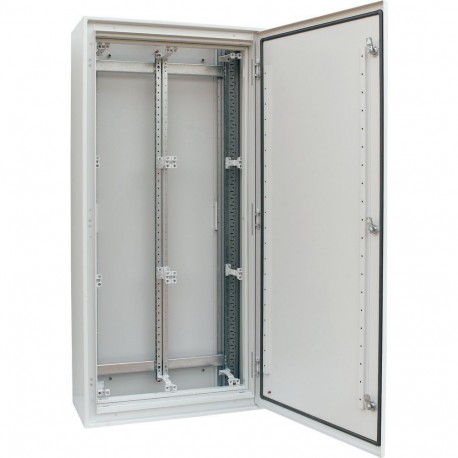

BPM-O-830/10-IVS 111369 EATON ELECTRIC Installation distribution board, HxWxD 1060x830x262mm, IP54
BPM-O-830/10-IVS
111369
EATON - MOELLER
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller BPM-O-830/10-IVS installation distribution board is engineered for organizing and housing modular circuit protection devices in commercial and industrial buildings. Distribution boards centralize power distribution to downstream circuits safely and efficiently. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Rated operational voltage: U e
- Rated frequency: f
- Rated operational current: I e
- Width (EF000008): 830 mm
- Height (EF000040): 1090 mm
- Depth (EF000049): 300 mm
- Material (EF002169): Steel
- Colour (EF000007): Grey
- RAL-number (EF000116): 7035
- Freestanding (EF020363): No
- Floor standing wall model (EF015208): No
- Suitable for wall mounting (EF000664): Yes
- Corner model (EF020814): No
- Intermediate mounting (EF022994): No
- Couplable (EF001229): No
- With mounting plate (EF000118): No
More info
▲Product range | Service distribution board IVS | ||
Basic function | Wall-mounting distribution system | ||
Single unit/Complete unit | Complete housing | ||
Degree of Protection | IP55 | ||
Description | Profi Plus basic enclosures Monoblock enclosure with door and double ward key lock The enclosure can be turned through 180° for cable entry from below. | ||
Material | Sheet steel | ||
Surface finish | Polyester powder coating Phosphated RAL 7035, light grey | ||
Colour | light gray (RAL 7035) | ||
Information about equipment supplied | Including mounting system for the IVS mounting units including insulating surround and mounted insulated support bracket including open cable entry at top, prepared for F3A flanges, closed at bottom | ||
Width | mm | 830 | |
Height | mm | 1060 | |
Depth | mm | 270 |
| General | |||
Standards | EN 60439-1/3 IEC 62208 | ||
Protection class | 1 | ||
Degree of Protection | IP55 | ||
Power loss | |||
Max. admissible heat dissipation, ambient air temperature +35 °C | W | 196 | |
Weight | kg | 44 | |
| Material characteristics | |||
Material | Sheet steel | ||
Surface treatment | Painting, phosphated and polyester powder coating | ||
Surface finish | Polyester powder coating Phosphated RAL 7035, light grey | ||
Colour | light gray (RAL 7035) | ||
Material characteristics | |||
Type Door | Doors with covered hinges Can be removed from 90° | ||
door opening angle | 100° (single mounting) | ||
Door interlock | Hinge handle with roller lever lock Cylinder lock Double-ward lock | ||
| Material properties | |||
Mechanical | |||
Impact resistance | IK07 | ||
Cable entry | Open cable entry, prepared for F3A flanges | ||
Electrical | |||
Rated operational voltage | Ue | V | 690 |
Rated frequency | f | Hz | 50 |
Rated operational current | Ie | A | 630 |
Max. admissible heat dissipation, ambient air temperature +35 °C | W | 196 | |
Earthings | M6 weld stud (base frame) M5 self-tapping screw (enclosure side plate, top/bottom panel) M6 weld stud (door) | ||
