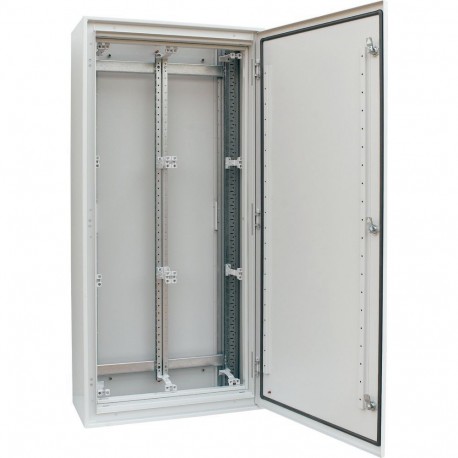

BPM-O-600/4.5-IVS 111366 EATON ELECTRIC Surface mounted service distribution board
BPM-O-600/4.5-IVS
111366
EATON - MOELLER
1 Pcs.
Surface mounted service distribution board
Service distribution boards IVS are used for power distribution and measurement purposes in electrical systems for household electrical systems and in comparative systems such as residential buildings, schools, administration centers, offices and similar buildings.
Automation > Enclosure/switchgear cabinet (empty)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Surface mounted service distribution board from Eaton Moeller, part number BPM-O-600/4.5-IVS, provides a secure enclosure for housing modular circuit breakers, contactors, and other low-voltage electrical distribution equipment in commercial and industrial buildings. These wall-mounted cabinets organize complex wiring layouts while protecting internal components from dust and accidental contact.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated operational voltage: U e:
- Rated frequency: f:
- Rated operational current: I e:
- Individual enclosure for wall mounting: P V:
- Starting enclosure for wall mounting: P V:
- Middle enclosure for wall mounting: P V:
- Individual enclosure for wall mounting: P V:
- Starting enclosure for wall mounting: P V:
- Middle enclosure for wall mounting: P V:
- Width (EF000008): 630 mm
- Height (EF000040): 490 mm
- Depth (EF000049): 300 mm
- Material (EF002169): Steel
- Colour (EF000007): Grey
- RAL-number (EF000116): 7035
- Freestanding (EF020363): No
More info
▲Delivery programme
Product range | Service distribution board IVS | ||
Basic function | Wall-mounting distribution system | ||
Single unit/Complete unit | Complete housing | ||
Degree of Protection | IP54 | ||
Description | Profi Plus basic enclosures Monoblock enclosure with door and double ward key lock The enclosure can be turned through 180° for cable entry from below. | ||
Material | Sheet steel | ||
Surface finish | Polyester powder coating Phosphated RAL 7035, light grey | ||
Colour | RAL 7035, light grey | ||
Information about equipment supplied | Including mounting system for the IVS mounting units including insulating surround and mounted insulated support bracket including open cable entry at top, prepared for F3A flanges, closed at bottom | ||
Width | mm | 600 | |
Height | mm | 510 | |
Depth | mm | 270 |
Technical data
| General | |||
Standards | EN 60439-1/3 IEC 62208 | ||
Protection class | 1 | ||
Degree of Protection | IP54 | ||
Power loss | |||
Max. admissible heat dissipation, ambient air temperature +35 °C | W | 108 | |
Weight | kg | 22.7 | |
| Material characteristics | |||
Material | Sheet steel | ||
Surface treatment | Painting, phosphated and polyester powder coating | ||
Surface finish | Polyester powder coating Phosphated RAL 7035, light grey | ||
Colour | RAL 7035, light grey | ||
Material characteristics | |||
Type Door | Doors with covered hinges Can be removed from 90° | ||
door opening angle | 100° (single mounting) | ||
Door interlock | Hinge handle with roller lever lock Cylinder lock Double-ward lock | ||
| Material properties | |||
Mechanical | |||
Impact resistance | IK07 | ||
Cable entry | Open cable entry, prepared for F3A flanges | ||
Electrical | |||
Rated operational voltage | Ue | V | 690 |
Rated frequency | f | Hz | 50 |
Rated operational current | Ie | CSA | 630 |
Max. admissible heat dissipation, ambient air temperature +35 °C | W | 108 | |
Earthings | M6 weld stud (base frame) M5 self-tapping screw (enclosure side plate, top/bottom panel) M6 weld stud (door) | ||
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification | |||
Heat dissipation, at an ambient temperature of 35°C, delta T: 20 degrees, calculated as per IEC 60890 | |||
Individual enclosure for wall mounting | PV | CO | 57 |
Starting enclosure for wall mounting | PV | CO | 54 |
Middle enclosure for wall mounting | PV | CO | 51 |
Heat dissipation, at an ambient temperature of 35°C, delta T: 35 degrees, calculated as per IEC 60890 | |||
Individual enclosure for wall mounting | PV | CO | 114 |
Starting enclosure for wall mounting | PV | CO | 108 |
Middle enclosure for wall mounting | PV | CO | 101 |
IEC/EN 61439 design verification | |||
10.2 Strength of materials and parts | |||
10.2.2 Corrosion resistance | Meets the product standard's requirements. | ||
10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. | ||
10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. | ||
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects | Meets the product standard's requirements. | ||
10.2.4 Resistance to ultra-violet (UV) radiation | Not relevant to indoor installations. | ||
10.2.5 Lifting | Does not apply to enclosures without lifting aids. | ||
10.2.6 Mechanical impact | IK07 | ||
10.2.7 Inscriptions | Meets the product standard's requirements. | ||
10.3 Degree of protection of ASSEMBLIES | IP54 | ||
10.4 Clearances and creepage distances | Is the panel builder's responsibility. | ||
10.5 Protection against electric shock | < 0.1 Ω; meets the product standard's requirements. | ||
10.6 Incorporation of switching devices and components | Is the panel builder's responsibility. | ||
10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. | ||
10.8 Connections for external conductors | Is the panel builder's responsibility. | ||
10.9 Insulation properties | |||
10.9.2 Power-frequency electric strength | Ui= 440 V AC | ||
10.9.3 Impulse withstand voltage | 4 kV | ||
10.9.4 Testing of enclosures made of insulating material | Does not apply to metal enclosures. | ||
10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. | ||
10.11 Short-circuit rating | Is the panel builder's responsibility. | ||
10.12 Electromagnetic compatibility | Is the panel builder's responsibility. | ||
10.13 Mechanical function | Meets the product standard's requirements. |
