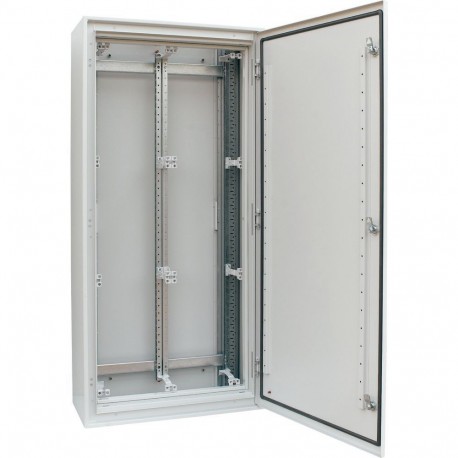

EATON - MOELLER BPM-O-600/12-IVS BPM-O-600/12-IVS 111368 EATON ELECTRIC Installation distribution board, HxWxD 1260x600x262mm, IP54 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BPM-O-600/12-IVS 111368 EATON ELECTRIC Installation distribution board, HxWxD 1260x600x262mm, IP54

BPM-O-600/12-IVS

111368

EATON - MOELLER

1 Pcs.

Installation distribution board, HxWxD=1260x600x262mm, IP54 Service distribution boards IVS are used for power distribution and measurement purposes in electrical systems for household electrical systems and in comparative systems such as residential buildings, schools, administration centers, offices and similar buildings.

Automation > Enclosure/switchgear cabinet (empty)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Delivery program
Product range
 Service distribution board IVS
Basic function
 Wall-mounting distribution system
Single unit/Complete unit
 Complete housing
Degree of Protection
 IP55
Description
 Profi Plus basic enclosures
Monoblock enclosure with door and double ward key lock
The enclosure can be turned through 180° for cable entry from below.
Material
 Sheet steel
Surface finish
 Polyester powder coating
Phosphated
RAL 7035, light grey
Colour
 light gray (RAL 7035)
Information about equipment supplied
 Including mounting system for the IVS mounting units
including insulating surround and mounted insulated support bracket
including open cable entry at top, prepared for F3A flanges, closed at bottom
Width
 mm 600
Height
 mm 1260
Depth
 mm 270
Technical data
General
Standards
 EN 60439-1/3
IEC 62208
Protection class
 1
Degree of Protection
 IP55
Power loss
Max. admissible heat dissipation, ambient air temperature +35 °C
 W 165
Weight
 kg 40.5
Material characteristics
Material
 Sheet steel
Surface treatment
 Painting, phosphated and polyester powder coating
Surface finish
 Polyester powder coating
Phosphated
RAL 7035, light grey
Colour
 light gray (RAL 7035)
Material characteristics
Type Door
 Doors with covered hinges
Can be removed from 90°
door opening angle
 100° (single mounting)
Door interlock
 Hinge handle with roller lever lock
Cylinder lock
Double-ward lock
Material properties
Mechanical
Impact resistance
 IK07
Cable entry
 Open cable entry, prepared for F3A flanges
Electrical
Rated operational voltage
 Ue V 690
Rated frequency
 f Hz 50
Rated operational current
 Ie A 630
Max. admissible heat dissipation, ambient air temperature +35 °C
 W 165
Earthings
 M6 weld stud (base frame)
M5 self-tapping screw (enclosure side plate, top/bottom panel)
M6 weld stud (door)

ETIM for 111368 Cabinets and enclosures (EC000261)
Feature Name Feature Value
Width (EF000008) 630 mm
Height (EF000040) 1290 mm
Depth (EF000049) 300 mm
Material (EF002169) Steel
Colour (EF000007) Grey
RAL-number (EF000116) 7035
Freestanding (EF020363) No
Floor standing wall model (EF015208) No
Suitable for wall mounting (EF000664) Yes
Corner model (EF020814) No
Intermediate mounting (EF022994) No
Couplable (EF001229) No
With mounting plate (EF000118) No
Mounting plate depth-adjustable (EF006054) No
Suitable for wall built-in (EF007536) No
Pole fastening (EF009582) No
With door (EF009169) No
Number of doors (EF000122) 1
With glazed door (EF001089) No
With ventilation door (EF006279) No
With rear door (EF007381) No
Number of locks (EF000123) 0
With cover (EF007965) No
Transparent cover (EF011401) No
Suitable for metrical mounting (EF005823) Yes
Pitched roof (EF009278) No
Pre-stamping (EF001039) No
EMC-version (EF001062) No
Impact strength (EF004293) IK10
Degree of protection (IP) (EF005474) IP55
