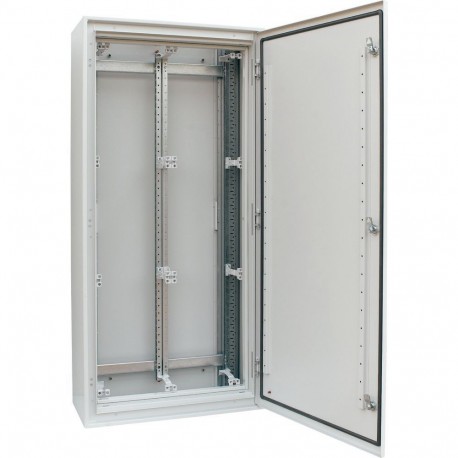

BPM-O-600/10-IVS 111367 EATON ELECTRIC Installation distribution board, HxWxD 1060x600x262mm, IP54
BPM-O-600/10-IVS
111367
EATON - MOELLER
1 Pcs.
Installation distribution board, HxWxD=1060x600x262mm, IP54
Service distribution boards IVS are used for power distribution and measurement purposes in electrical systems for household electrical systems and in comparative systems such as residential buildings, schools, administration centers, offices and similar buildings.
Automation > Enclosure/switchgear cabinet (empty)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller installation distribution board offers a secure structural enclosure for housing modular circuit breakers and terminal blocks. These wall-mounted cabinets centralize electrical control components for commercial and industrial setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width (EF000008): 620 mm
- Height (EF000040): 290 mm
- Depth (EF000049): 1090 mm
- Material (EF002169): Steel
- Surface finishing (EF006569): Powder coated
- Colour (EF000007): Grey
- RAL-number (EF000116): 7035
- Freestanding (EF020363): No
- Floor standing wall model (EF015208): No
- Suitable for wall mounting (EF000664): Yes
- Corner model (EF020814): No
- Intermediate mounting (EF022994): No
- Couplable (EF001229): No
- With mounting plate (EF000118): No
- Mounting plate depth-adjustable (EF006054): No
- Suitable for wall built-in (EF007536): No
More info
▲Installation distribution board, HxWxD=1060x600x262mm, IP54
Service distribution boards IVS are used for power distribution and measurement purposes in electrical systems for household electrical systems and in comparative systems such as residential buildings, schools, administration centers, offices and similar buildings.
Delivery program
Product range
Service distribution board IVS
Basic function
Wall-mounting distribution system
Single unit/Complete unit
Complete housing
Degree of Protection
IP55
Description
Profi Plus basic enclosures
Monoblock enclosure with door and double ward key lock
The enclosure can be turned through 180° for cable entry from below.
Monoblock enclosure with door and double ward key lock
The enclosure can be turned through 180° for cable entry from below.
Material
Sheet steel
Surface finish
Polyester powder coating
Phosphated
RAL 7035, light grey
Phosphated
RAL 7035, light grey
Colour
light gray (RAL 7035)
Information about equipment supplied
Including mounting system for the IVS mounting units
including insulating surround and mounted insulated support bracket
including open cable entry at top, prepared for F3A flanges, closed at bottom
including insulating surround and mounted insulated support bracket
including open cable entry at top, prepared for F3A flanges, closed at bottom
Width
600 mm
Height
1060 mm
Depth
270 mm
Technical data
General
Standards
EN 60439-1/3
IEC 62208
IEC 62208
Protection class
1
Degree of Protection
IP55
Power lossMax. admissible heat dissipation, ambient air temperature +35 °C
143 W
Weight
38.5 kg
Material characteristics
Material
Sheet steel
Surface treatment
Painting, phosphated and polyester powder coating
Surface finish
Polyester powder coating
Phosphated
RAL 7035, light grey
Phosphated
RAL 7035, light grey
Colour
light gray (RAL 7035)
Material characteristicsType Door
Doors with covered hinges
Can be removed from 90°
Can be removed from 90°
Material characteristicsdoor opening angle
100° (single mounting)
Material characteristicsDoor interlock
Hinge handle with roller lever lock
Cylinder lock
Double-ward lock
Cylinder lock
Double-ward lock
Material properties
MechanicalImpact resistance
IK07
MechanicalCable entry
Open cable entry, prepared for F3A flanges
ElectricalRated operational voltage [Ue]
690 V
ElectricalRated frequency [f]
50 Hz
ElectricalRated operational current [Ie]
630 A
ElectricalMax. admissible heat dissipation, ambient air temperature +35 °C
143 W
ElectricalEarthings
M6 weld stud (base frame)
M5 self-tapping screw (enclosure side plate, top/bottom panel)
M6 weld stud (door)
M5 self-tapping screw (enclosure side plate, top/bottom panel)
M6 weld stud (door)
Design verification as per IEC/EN 61439
Technical data for design verification
Heat dissipation, at an ambient temperature of 35°C, delta T: 20 degrees in top of the enclosure, calculated as per IEC 60890Individual enclosure for wall mounting [PV]
71 W
Heat dissipation, at an ambient temperature of 35°C, delta T: 20 degrees in top of the enclosure, calculated as per IEC 60890Starting enclosure for wall mounting [PV]
68 W
Heat dissipation, at an ambient temperature of 35°C, delta T: 20 degrees in top of the enclosure, calculated as per IEC 60890Middle enclosure for wall mounting [PV]
66 W
Heat dissipation, at an ambient temperature of 35°C, delta T: 35 degrees in top of the enclosure, calculated as per IEC 60890Individual enclosure for wall mounting [PV]
143 W
Heat dissipation, at an ambient temperature of 35°C, delta T: 35 degrees in top of the enclosure, calculated as per IEC 60890Starting enclosure for wall mounting [PV]
137 W
Heat dissipation, at an ambient temperature of 35°C, delta T: 35 degrees in top of the enclosure, calculated as per IEC 60890Middle enclosure for wall mounting [PV]
132 W
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Not relevant to indoor installations.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply to enclosures without lifting aids.
10.2 Strength of materials and parts10.2.6 Mechanical impact
IK10
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
IP55
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
< 0.1 Ω; meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Is the panel builder's responsibility.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Ui= 440 V AC
10.9 Insulation properties10.9.3 Impulse withstand voltage
4 kV
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Does not apply to metal enclosures.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility.
10.13 Mechanical function
Meets the product standard's requirements.
