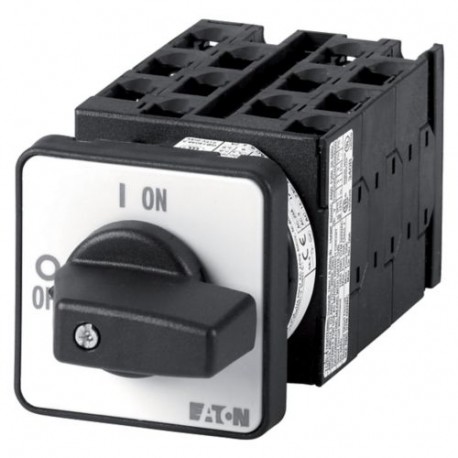

T0-6-8362/E 015737 Y7-15737 EATON ELECTRIC Changeoverswitches, Contacts: 12, 20 A, front plate: 1-0-2, 60 °,..
T0-6-8362/E
015737
Y7-15737
EATON - MOELLER
1 Pcs.
Changeoverswitches, Contacts: 12, 20 A, front plate: 1-0-2, 60 °, maintained, flush mounting
Switch Switch; 12 poles; 20 A; Indicator plate: 1-0-2; 60 °;
Eaton Moeller® series T0 Changeoverswitches, T0, 20 A, flush mounting, 6 contact unit(s), Contacts: 12, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8362
Changeover switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 12, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Changeover switches including the Eaton Moeller T0-6-8362/E are utilized to toggle source feeds or direct operational pathways in multi-circuit control applications.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reverser
- Number of poles (EF001391): 6
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 20 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
- Rated operation power at AC-3, 400 V (EF001364): 4 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
015737
Model Code
T0-6-8362/E
EAN
4015080157373
Product Length/Depth
124 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.16 kg
Certifications
CSA-C22.2 No. 94
UL 60947-4-1
VDE 0660
IEC/EN 60204
CSA
CSA File No.: 012528
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
CE
IEC/EN 60947
UL
UL File No.: E36332
IEC/EN 60947-3
UL 60947-4-1
VDE 0660
IEC/EN 60204
CSA
CSA File No.: 012528
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
CE
IEC/EN 60947
UL
UL File No.: E36332
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
