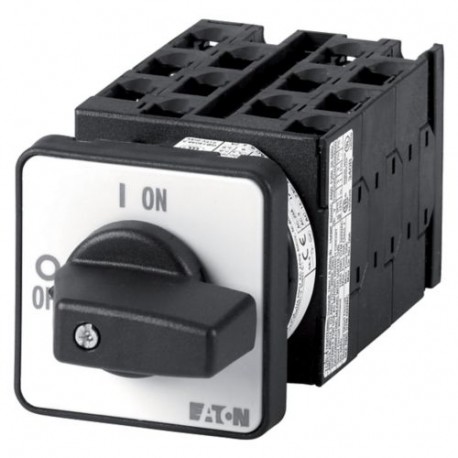

EATON - MOELLER T0-6-8155/E T0-6-8155/E 015696 Y7-15696 EATON ELECTRIC Universal control switches, Contacts: 12, 20 A, front plate: Höhe.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-6-8155/E 015696 Y7-15696 EATON ELECTRIC Universal control switches, Contacts: 12, 20 A, front plate: Höhe..

T0-6-8155/E

015696

Y7-15696

EATON - MOELLER

1 Pcs.

Universal control switches, Contacts: 12, 20 A, front plate: Höher>0 Universal control switch; 12 poles; 20 A; Indicator plate: Eaton Moeller® series T0 Universal control switches, T0, 20 A, flush mounting, 6 contact unit(s), Contacts: 12, 90 °, momentary, With 0 (Off) position, with spring-return from both directions to 0, Höher>0 Universal control switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 12, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions to 0, 6 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: Höher>0

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-6-8155/E universal control switches manage complex switching logic and directional changes across various industrial automation installations. These robust rotary devices deliver dependable electrical isolation and command routing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 0
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Universal control switch
Catalog Number
015696
Model Code
T0-6-8155/E
EAN
4015080156963
Product Length/Depth
124 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.16 kg
Certifications
CSA File No.: 012528
IEC/EN 60204
UL File No.: E36332
CSA
UL 60947-4-1
IEC/EN 60947-3
UL
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
CSA Class No.: 3211-05
CE
UL Category Control No.: NLRV
IEC/EN 60947
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
