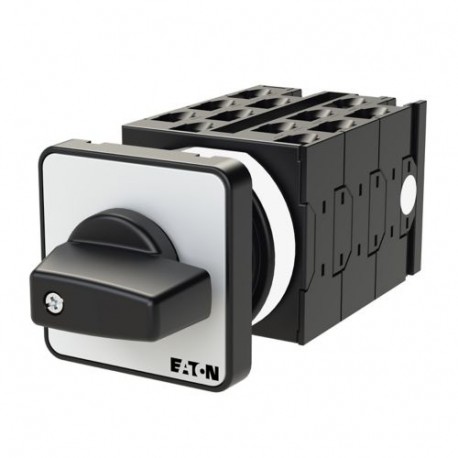

EATON - MOELLER T0-6-15230/E T0-6-15230/E 015409 Y7-15409 EATON ELECTRIC Step switches, Contacts: 12, 20 A, front plate: 1-10, 30 °, Unin.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-6-15230/E 015409 Y7-15409 EATON ELECTRIC Step switches, Contacts: 12, 20 A, front plate: 1-10, 30 °, Unin..

T0-6-15230/E

015409

Y7-15409

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 12, 20 A, front plate: 1-10, 30 °, Uninterruptible, maintained, flush mounting Step Switch 12 Pole 20 A Indicator Plate: 1-10 30° Eaton Moeller® series T0 Step switches, T0, 20 A, flush mounting, 6 contact unit(s), Contacts: 12, 30 °, maintained, Without 0 (Off) position, 1-10, Design number 15230 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 12, Contact behavior: Uninterruptible, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 30 °, Switching performance: maintained, Without 0 (Off) position, 6 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1-10

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Multi-step operational adjustments in complex machinery are managed effectively by step switches such as the Eaton Moeller T0-6-15230/E. These multi-position devices enable precise manual control over numerous circuits or speed levels within industrial panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 10
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
015409
Model Code
T0-6-15230/E
EAN
4015080154099
Product Length/Depth
124 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.16 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
CSA File No.: 012528
IEC/EN 60947-3
UL 60947-4-1
CSA
IEC/EN 60947
VDE 0660
CE
UL
UL File No.: E36332
CSA Class No.: 3211-05
CSA-C22.2 No. 94
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
