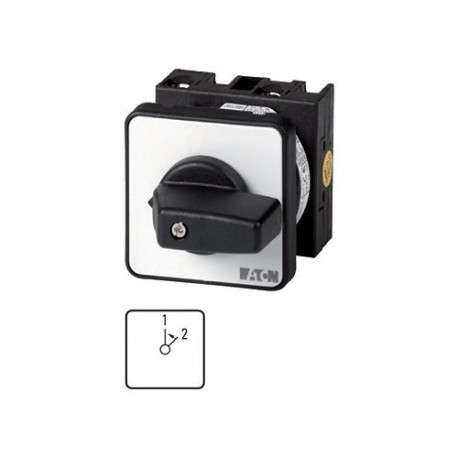

EATON - MOELLER T0-1-8295/EZ T0-1-8295/EZ 009740 Y7-9740 EATON ELECTRIC Changeoverswitches, Contacts: 2, 20 A, front plate: 1 2, 45 °, mo.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-8295/EZ 009740 Y7-9740 EATON ELECTRIC Changeoverswitches, Contacts: 2, 20 A, front plate: 1 2, 45 °, mo..

T0-1-8295/EZ

009740

Y7-9740

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 2, 20 A, front plate: 1<2, 45 °, momentary, centre mounting Switch 2-pole switch 20 A Indicator plate: 1<2 45° Eaton Moeller® series T0 Changeover switches, T0, 20 A, center mounting, 1 contact unit(s), Contacts: 2, 45 °, momentary, Without 0 (Off) position, With spring-return to 1, 1<2, Design number 8295 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: momentary, Without 0 (Off) position, With spring-return to 1, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1<2

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T0-1-8295/EZ changeover switch directs power between alternate circuit paths in industrial control systems and distribution boards. Reverser and changeover components are essential for managing multi-source supplies and altering operational parameters.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
009740
Model Code
T0-1-8295/EZ
EAN
4015080097402
Product Length/Depth
96 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.101 kg
Certifications
IEC/EN 60947
UL
UL 60947-4-1
UL File No.: E36332
IEC/EN 60204
VDE 0660
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
CSA
CSA File No.: 012528
UL Category Control No.: NLRV
CE
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
