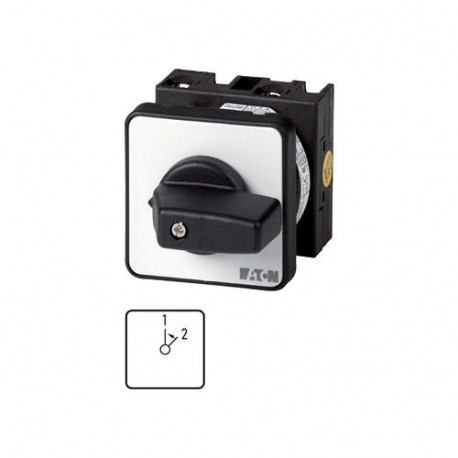

EATON - MOELLER T0-1-8295/E T0-1-8295/E 009734 Y7-9734 EATON ELECTRIC Changeoverswitches, Contacts: 2, 20 A, front plate: 1 2, 45 °, mom.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-8295/E 009734 Y7-9734 EATON ELECTRIC Changeoverswitches, Contacts: 2, 20 A, front plate: 1 2, 45 °, mom..

T0-1-8295/E

009734

Y7-9734

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 2, 20 A, front plate: 1<2, 45 °, momentary, flush mounting Switch Switch. 2 poles. 20 A. Indicator plate: 1<2. 45 °. Eaton Moeller® series T0 Changeover switches, T0, 20 A, flush mounting, 1 contact unit(s), Contacts: 2, 45 °, momentary, Without 0 (Off) position, With spring-return to 1, 1<2, Design number 8295 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: momentary, Without 0 (Off) position, With spring-return to 1, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1<2

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-1-8295/E changeoverswitches are engineered to reliably reroute electrical circuits between multiple operational paths in industrial control panels. These robust manual switching devices allow operators to safely change signal directions or alter machine operating states during active processes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Changeover switch
Catalog Number
009734
Model Code
T0-1-8295/E
EAN
4015080097341
Product Length/Depth
76 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.083 kg
Certifications
CSA
CSA Class No.: 3211-05
UL 60947-4-1
CSA File No.: 012528
CSA-C22.2 No. 94
IEC/EN 60947-3
UL
UL File No.: E36332
CE
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
VDE 0660
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
