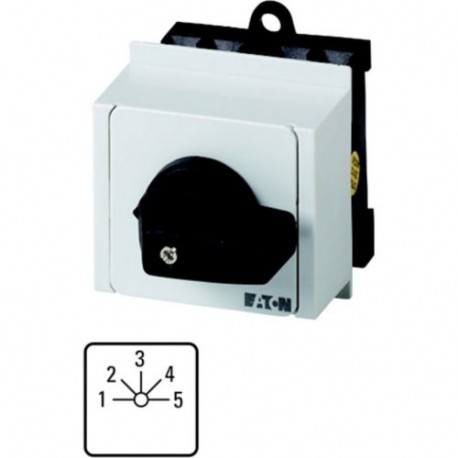

EATON - MOELLER T0-3-150/IVS T0-3-150/IVS 012383 Y7-12383 EATON ELECTRIC Step switches, Contacts: 5, 20 A, front plate: 1-5, 45 °, mainta.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-150/IVS 012383 Y7-12383 EATON ELECTRIC Step switches, Contacts: 5, 20 A, front plate: 1-5, 45 °, mainta..

T0-3-150/IVS

012383

Y7-12383

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 5, 20 A, front plate: 1-5, 45 °, maintained, service distribution board mounting Switch steps; 5-pole; 20a; rating Plate: 1-5; 45 °; Interlock; Mounting in control cabinet Eaton Moeller® series T0 Step switches, T0, 20 A, service distribution board mounting, 3 contact unit(s), Contacts: 5, 45 °, maintained, Without 0 (Off) position, 1-5, Design number 150 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 5, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 45 °, Switching performance: maintained, Without 0 (Off) position, 3 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1-5

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-3-150/IVS step switches are integrated into distribution boards to manually cycle through discrete operational levels or inputs.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 5
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 4
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
012383
Model Code
T0-3-150/IVS
EAN
4015080123835
Product Length/Depth
101 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.155 kg
Certifications
UL 60947-4-1
CSA-C22.2 No. 94
CSA File No.: 012528
IEC/EN 60947
VDE 0660
IEC/EN 60204
UL
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
CE
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
