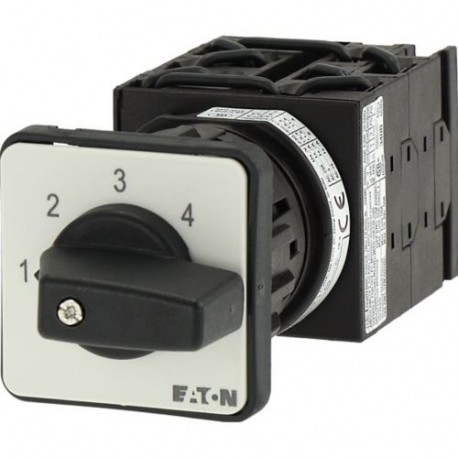

EATON - MOELLER T0-3-150/EZ T0-3-150/EZ 012380 Y7-12380 EATON ELECTRIC Step switches, Contacts: 5, 20 A, front plate: 1-5, 45 °, maintai.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-150/EZ 012380 Y7-12380 EATON ELECTRIC Step switches, Contacts: 5, 20 A, front plate: 1-5, 45 °, maintai..

T0-3-150/EZ

012380

Y7-12380

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 5, 20 A, front plate: 1-5, 45 °, maintained, centre mounting Switch steps; 5-pole; 20a; rating Plate: 1-5; 45 °; Interlock; recessed Mounting with central fixing Eaton Moeller® series T0 Step switches, T0, 20 A, centre mounting, 3 contact unit(s), Contacts: 5, 45 °, maintained, Without 0 (Off) position, 1-5, Design number 150 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 5, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: maintained, Without 0 (Off) position, 3 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1-5

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller step switch (part number T0-3-150/EZ) facilitates sequential circuit routing and multi-stage manual control across industrial electrical systems. Step switches are commonly integrated into complex machinery, test benches, and generator control panels to step through distinct operational phases.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 5
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
012380
Model Code
T0-3-150/EZ
EAN
4015080123804
Product Length/Depth
115 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.153 kg
Certifications
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
IEC/EN 60947-3
CSA
IEC/EN 60204
VDE 0660
IEC/EN 60947
UL File No.: E36332
CE
CSA Class No.: 3211-05
UL Category Control No.: NLRV
UL
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
