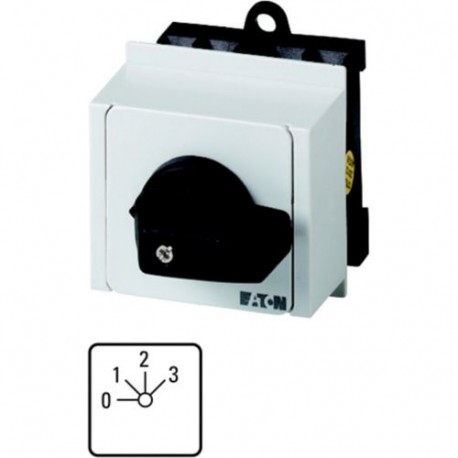

EATON - MOELLER T0-2-142/IVS T0-2-142/IVS 011135 Y7-11135 EATON ELECTRIC Step switches, Contacts: 3, 20 A, front plate: 0-5, 45 °, mainta.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-142/IVS 011135 Y7-11135 EATON ELECTRIC Step switches, Contacts: 3, 20 A, front plate: 0-5, 45 °, mainta..

T0-2-142/IVS

011135

Y7-11135

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 3, 20 A, front plate: 0-5, 45 °, maintained, service distribution board mounting Switch steps; 3-pole; 20a; rating Plate: 0-5; 45 °; Interlock; Mounting in control cabinet Eaton Moeller® series T0 Step switches, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 3, 45 °, maintained, With 0 (Off) position, 0-5, Design number 142 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 3, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-5

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for distribution board installation, the Eaton Moeller step switch (part number T0-2-142/IVS) allows operators to manually step through multiple distinct circuit paths in automation setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 4
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 4
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
011135
Model Code
T0-2-142/IVS
EAN
4015080111351
Product Length/Depth
92 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.12 kg
Certifications
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
UL File No.: E36332
IEC/EN 60204
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-05
CE
UL 60947-4-1
UL Category Control No.: NLRV
CSA
UL
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
