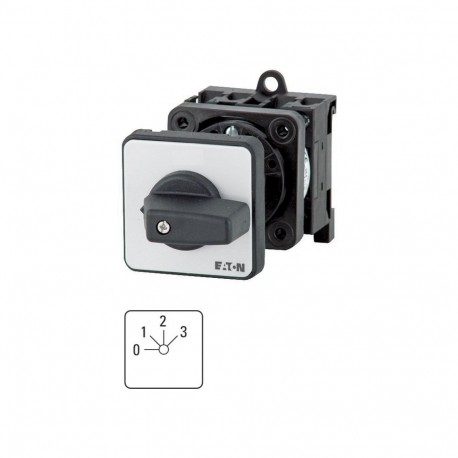

EATON - MOELLER T0-2-171/Z T0-2-171/Z 011508 Y7-11508 EATON ELECTRIC Step switches, Contacts: 3, 20 A, front plate: 0-3, 45 °, maintain.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-171/Z 011508 Y7-11508 EATON ELECTRIC Step switches, Contacts: 3, 20 A, front plate: 0-3, 45 °, maintain..

T0-2-171/Z

011508

Y7-11508

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 3, 20 A, front plate: 0-3, 45 °, maintained, rear mounting Switch steps; 3-pole; 20a; rating Plate: 0-3; 45 °; Interlock; Mounting bottom panel Eaton Moeller® series T0 Step switches, T0, 20 A, rear mounting, 2 contact unit(s), Contacts: 3, 45 °, maintained, With 0 (Off) position, 0-3, Design number 171 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 3, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-3

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Step switches are employed in electrical distribution and machinery control to manually sequence through multiple distinct circuits or operational stages. This Eaton Moeller T0-2-171/Z component is designed for built-in panel configurations where precise multi-position circuit routing is required. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 4
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
011508
Model Code
T0-2-171/Z
EAN
4015080115083
Product Length/Depth
128 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.134 kg
Certifications
UL File No.: E36332
UL
VDE 0660
UL 60947-4-1
CSA
CE
CSA File No.: 012528
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-05
CSA-C22.2 No. 94
IEC/EN 60947
IEC/EN 60947-3
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
