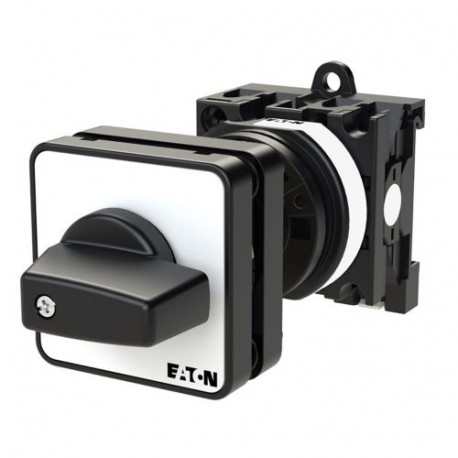

T0-1-15075/Z 009157 Y7-9157 EATON ELECTRIC Step switches, Contacts: 2, 20 A, front plate: 1-2, 45 °, maintai..
T0-1-15075/Z
009157
Y7-9157
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller T0-1-15075/Z is a step switch configured to sequence distinct operational stages across industrial automation and power networks. Level switches allow technicians to manually progress electrical loads through predefined operational tiers.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Level switch
- Number of poles (EF001391): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Number of switch positions (EF000231): 2
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): Yes
- Suitable for front mounting (EF007246): No
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): Yes
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
VDE 0660
CE
UL File No.: E36332
CSA
IEC/EN 60947
UL Category Control No.: NLRV
IEC/EN 60947-3
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
UL 60947-4-1
CSA File No.: 012528
CSA-C22.2 No. 94
