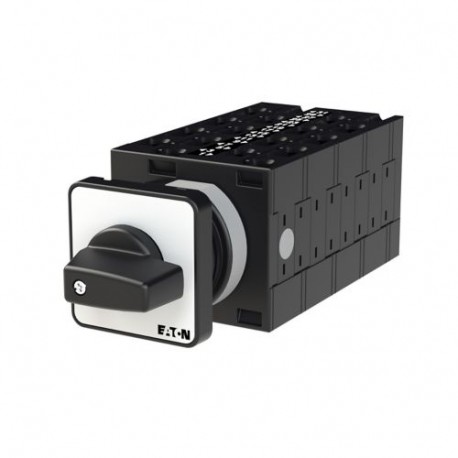

T3-8-15152/E 005650 Y7-5650 EATON ELECTRIC Step switches, Contacts: 15, 32 A, front plate: 1-5, 45 °, mainta..
T3-8-15152/E
005650
Y7-5650
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Built for complex machinery panels, the Eaton Moeller T3-8-15152/E level switch provides precise manual stepping capabilities across multi-stage systems. Multi-position step switches are heavily relied upon in industrial engineering to govern sequential electrical states, heating banks, or motor speeds. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Level switch
- Number of poles (EF001391): 3
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Number of switch positions (EF000231): 5
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
CSA File No.: 012528
IEC/EN 60204
IEC/EN 60947-3
UL
IEC/EN 60947
UL Category Control No.: NLRV
UL File No.: E36332
VDE 0660
CSA Class No.: 3211-05
CSA-C22.2 No. 94
CE
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
