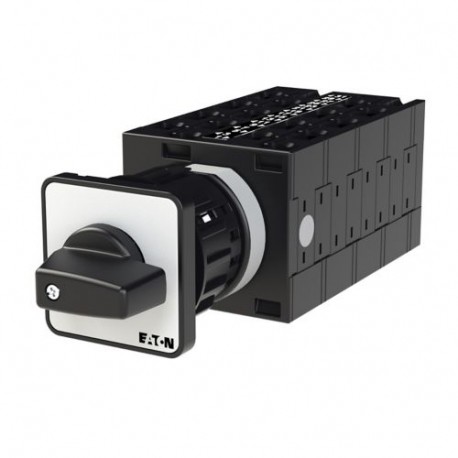

EATON - MOELLER T3-8-15152/EZ T3-8-15152/EZ 005651 Y7-5651 EATON ELECTRIC Step switches, Contacts: 15, 32 A, front plate: 1-5, 45 °, maint.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-8-15152/EZ 005651 Y7-5651 EATON ELECTRIC Step switches, Contacts: 15, 32 A, front plate: 1-5, 45 °, maint..

T3-8-15152/EZ

005651

Y7-5651

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 15, 32 A, front plate: 1-5, 45 °, maintained, centre mounting Switch steps; 15-pole; 32; rating Plate: 1-5; 45 °; Interlock; recessed Mounting with central fixing Eaton Moeller® series T3 Step switches, T3, 32 A, centre mounting, 8 contact unit(s), Contacts: 15, 45 °, maintained, Without 0 (Off) position, 1-5, Design number 15152 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 15, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: maintained, Without 0 (Off) position, 8 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: 1-5

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A heavy-duty step switch like the Eaton Moeller T3-8-15152/EZ handles higher current loads while managing multi-position switching routines in industrial automation setups. Electrical technicians deploy these parts for precise process selection.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 3
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 5
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Step switch
Catalog Number
005651
Model Code
T3-8-15152/EZ
EAN
4015080056515
Product Length/Depth
182 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.412 kg
Certifications
CE
IEC/EN 60947-3
CSA Class No.: 3211-05
CSA File No.: 012528
UL
UL File No.: E36332
VDE 0660
IEC/EN 60947
CSA-C22.2 No. 94
IEC/EN 60204
CSA
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
