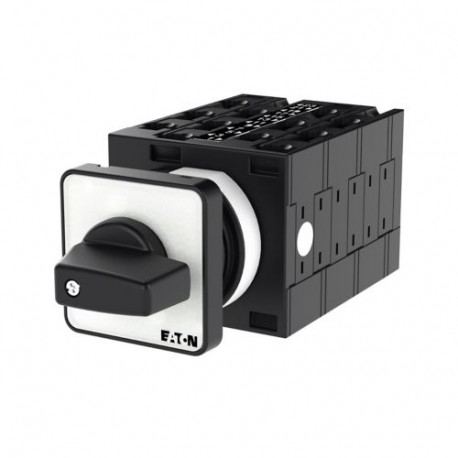

EATON - MOELLER T3-6-15253/E T3-6-15253/E 004321 Y7-4321 EATON ELECTRIC Step switches, Contacts: 12, 32 A, front plate: 1-12, 30 °, maint.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-6-15253/E 004321 Y7-4321 EATON ELECTRIC Step switches, Contacts: 12, 32 A, front plate: 1-12, 30 °, maint..

T3-6-15253/E

004321

Y7-4321

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 12, 32 A, front plate: 1-12, 30 °, maintained, flush mounting Switch steps; 12-pole; 32; rating Plate: 1-12; 30 °; Interlock; recessed Mounting Eaton Moeller® series T3 Step switches, T3, 32 A, flush mounting, 6 contact unit(s), Contacts: 12, 30 °, maintained, Without 0 (Off) position, 1-12, Design number 15253 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 12, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 30 °, Switching performance: maintained, Without 0 (Off) position, 6 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: 1-12

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Handling extended operational sequences in heavy-duty machinery is the primary function of a step switch such as the Eaton Moeller T3-6-15253/E. These robust rotary units allow personnel to transition equipment through numerous distinct functional phases.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 12
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Step switch
Catalog Number
004321
Model Code
T3-6-15253/E
EAN
4015080043218
Product Length/Depth
137 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.332 kg
Certifications
CSA-C22.2 No. 94
IEC/EN 60947-3
UL 60947-4-1
VDE 0660
IEC/EN 60204
UL
CSA File No.: 012528
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
UL File No.: E36332
CE
IEC/EN 60947
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
