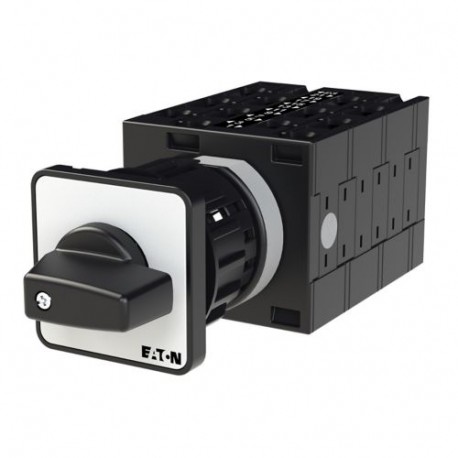

EATON - MOELLER T3-6-15253/EZ T3-6-15253/EZ 004322 Y7-4322 EATON ELECTRIC Step switches, Contacts: 12, 32 A, front plate: 1-12, 30 °, main.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-6-15253/EZ 004322 Y7-4322 EATON ELECTRIC Step switches, Contacts: 12, 32 A, front plate: 1-12, 30 °, main..

T3-6-15253/EZ

004322

Y7-4322

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 12, 32 A, front plate: 1-12, 30 °, maintained, centre mounting Switch steps; 12-pole; 32; rating Plate: 1-12; 30 °; Interlock; recessed Mounting with central fixing Eaton Moeller® series T3 Step switches, T3, 32 A, centre mounting, 6 contact unit(s), Contacts: 12, 30 °, maintained, Without 0 (Off) position, 1-12, Design number 15253 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 12, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 30 °, Switching performance: maintained, Without 0 (Off) position, 6 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: 1-12

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A step switch allows operators to manually cycle through multiple discrete circuit configurations within complex electrical systems and machinery. This Eaton Moeller T3-6-15253/EZ unit is engineered for reliable front-plate mounting and high-current management in industrial distribution setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 12
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Step switch
Catalog Number
004322
Model Code
T3-6-15253/EZ
EAN
4015080043225
Product Length/Depth
159 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.37 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
UL Category Control No.: NLRV
IEC/EN 60947-3
CSA-C22.2 No. 94
IEC/EN 60204
CSA
CE
CSA File No.: 012528
VDE 0660
CSA Class No.: 3211-05
UL 60947-4-1
UL
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
