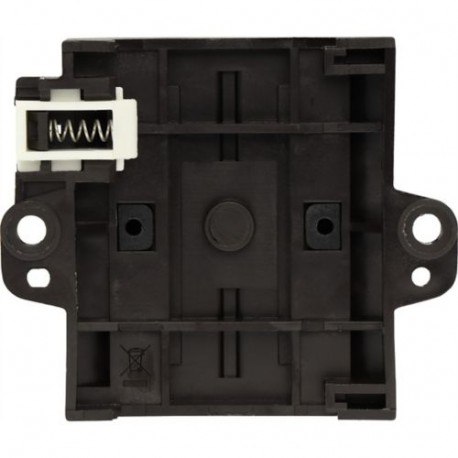

T3-5-15139/Z 004041 Y7-4041 EATON ELECTRIC Step switches, Contacts: 10, 32 A, front plate: 1-5, 45 °, mainta..
T3-5-15139/Z
004041
Y7-4041
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller step switch, part number T3-5-15139/Z, is a specialized control component used in industrial environments to manually select specific operational stages, multi-speed motor settings, or alternative circuit configurations within a larger electrical system. Rotary step switches provide reliable manual intervention for complex machine routines and sequential power distribution.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Level switch
- Number of poles (EF001391): 2
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Number of switch positions (EF000231): 5
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): Yes
- Suitable for front mounting (EF007246): No
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): Yes
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
UL
VDE 0660
UL 60947-4-1
IEC/EN 60947
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA File No.: 012528
IEC/EN 60204
CSA-C22.2 No. 94
CSA
UL File No.: E36332
