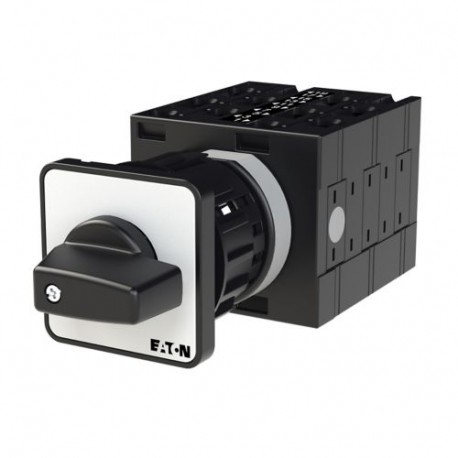

EATON - MOELLER T3-5-15133/EZ T3-5-15133/EZ 004035 Y7-4035 EATON ELECTRIC Step switches, Contacts: 10, 32 A, front plate: 0-5, 45 °, maint.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-5-15133/EZ 004035 Y7-4035 EATON ELECTRIC Step switches, Contacts: 10, 32 A, front plate: 0-5, 45 °, maint..

T3-5-15133/EZ

004035

Y7-4035

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 10, 32 A, front plate: 0-5, 45 °, maintained, centre mounting Switch steps; 10-pole; 32; Plate indicator: 0-5; 45 °; Interlock; recessed Mounting with central fixing Eaton Moeller® series T3 Step switches, T3, 32 A, centre mounting, 5 contact unit(s), Contacts: 10, 45 °, maintained, With 0 (Off) position, 0-5, Design number 15133 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 10, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 5 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: 0-5

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T3-5-15133/EZ is a step switch designed for manually directing circuits and managing multi-step operational sequences in electrical installations. These components are frequently deployed in industrial setups to facilitate reliable mode selection and process control.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 6
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Step switch
Catalog Number
004035
Model Code
T3-5-15133/EZ
EAN
4015080040354
Product Length/Depth
147 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.32 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
CSA-C22.2 No. 94
CSA File No.: 012528
CSA Class No.: 3211-05
UL
UL File No.: E36332
UL 60947-4-1
CSA
IEC/EN 60947
IEC/EN 60947-3
UL Category Control No.: NLRV
VDE 0660
CE
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
