T3-3-8261/I2 222878 Y7-222878 EATON ELECTRIC Step switches, Contacts: 6, 32 A, front plate: 0-3, 45 °, maint..
T3-3-8261/I2
222878
Y7-222878
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

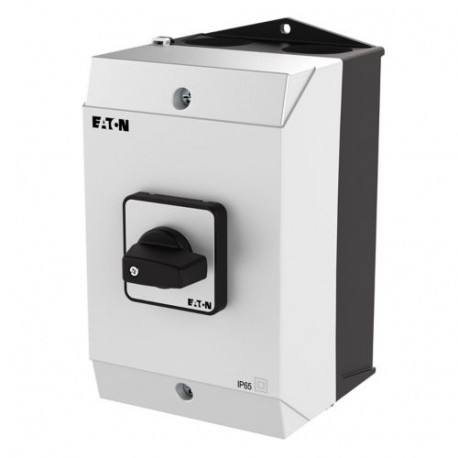

An Eaton Moeller step switch (part number T3-3-8261/I2) provides reliable multi-position circuit selection, commonly used for managing tapped transformer outputs or progressive system loads.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Level switch
- Number of poles (EF001391): 2
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Number of switch positions (EF000231): 4
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Surface mounted device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): Yes
- Suitable for front mounting (EF007246): No
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): Yes
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
EN 60947-3
CSA Std. C22.2 No. 14-05
UL 508
VDE
CSA-C22.2 No. 94
CSA
IEC/EN 60204
VDE 0660
CSA-C22.2 No. 60947-4-1-14
UL
UL 60947-4-1
IEC/EN 60947-3
UL File No.: E36332
CSA File No.: 012528
IEC/EN 60947
UL Category Control No.: NLRV
CE
CSA Class No.: 3211-07
