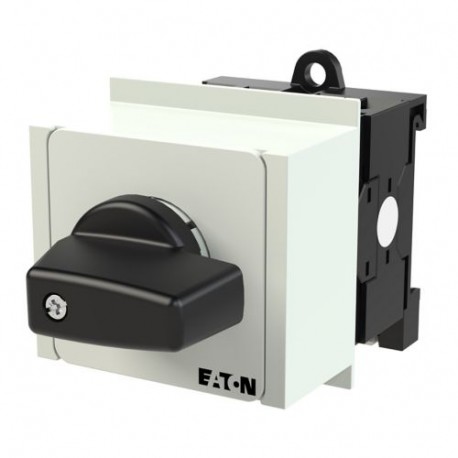

EATON - MOELLER T0-2-95/IVS T0-2-95/IVS 012237 Y7-12237 EATON ELECTRIC step switch for heating, Contacts: 4, 20 A, front plate: 0-3, 60 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-95/IVS 012237 Y7-12237 EATON ELECTRIC step switch for heating, Contacts: 4, 20 A, front plate: 0-3, 60 ..

T0-2-95/IVS

012237

Y7-12237

EATON - MOELLER

1 Pcs.

step switch for heating, Contacts: 4, 20 A, front plate: 0-3, 60 °, maintained, service distribution board mounting Switch steps for heating; 4-pole; 20a; rating Plate: 0-3; 60 °; Interlock; Mounting in control cabinet step switch for heating, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, With 0 (Off) position, 0-3, Design number 95 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-3

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller step switch for heating, part number T0-2-95/IVS, functions as a manual selector component utilized in commercial and industrial heating systems to regulate operational stages. Rotary switches of this type safely manage resistive loads and multi-stage heating elements inside distribution boards or control enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 4
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 4
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
012237
Model Code
T0-2-95/IVS
EAN
4015080122371
Product Length/Depth
92 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.12 kg
Certifications
CSA Class No.: 3211-05
VDE 0660
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
CSA
IEC/EN 60947
CE
CSA-C22.2 No. 94
UL 60947-4-1
IEC/EN 60204
IEC/EN 60947-3
UL Category Control No.: NLRV
CSA File No.: 012528
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
