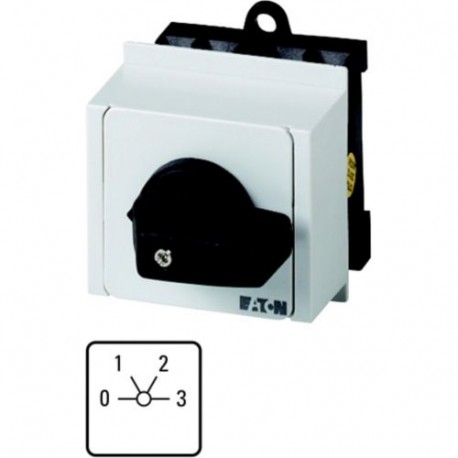

EATON - MOELLER T0-2-96/IVS T0-2-96/IVS 012244 Y7-12244 EATON ELECTRIC step switch for heating, Contacts: 3, 20 A, front plate: 0-3, 60 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-96/IVS 012244 Y7-12244 EATON ELECTRIC step switch for heating, Contacts: 3, 20 A, front plate: 0-3, 60 ..

T0-2-96/IVS

012244

Y7-12244

EATON - MOELLER

1 Pcs.

step switch for heating, Contacts: 3, 20 A, front plate: 0-3, 60 °, maintained, service distribution board mounting Switch steps for heating; 3-pole; 20a; rating Plate: 0-3; 60 °; Interlock; Mounting in control cabinet Eaton Moeller® series T0 step switch for heating, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 3, 60 °, maintained, With 0 (Off) position, 0-3, Design number 96 Step switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 3, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-3, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
012244
Model Code
T0-2-96/IVS
EAN
4015080122449
Product Length/Depth
92 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.12 kg
Certifications
CE
VDE 0660
CSA-C22.2 No. 94
UL 60947-4-1
CSA File No.: 012528
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
UL Category Control No.: NLRV
CSA Class No.: 3211-05
IEC/EN 60947-3
CSA
UL File No.: E36332
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 012244 Low-voltage industrial controls and switchgear (EC001105)
Feature Name Feature Value
Model (EF000010) On/Off switch
Number of poles (EF001391) 1
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Rated permanent current Iu (EF001389) 20 A
Rated operation current Ie at AC-3, 400 V (EF001392) 11.5 A
Rated operation power at AC-3, 400 V (EF001364) 4 kW
Degree of protection (IP), front side (EF003118) IP30
Degree of protection (NEMA), front side (EF011961) 2
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Suitable for floor mounting (EF007243) Yes
Suitable for front mounting (EF007246) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Housing material (EF001596) Plastic
Type of control element (EF006976) Short thumb-grip
Type of electrical connection of main circuit (EF006819) Screw connection
