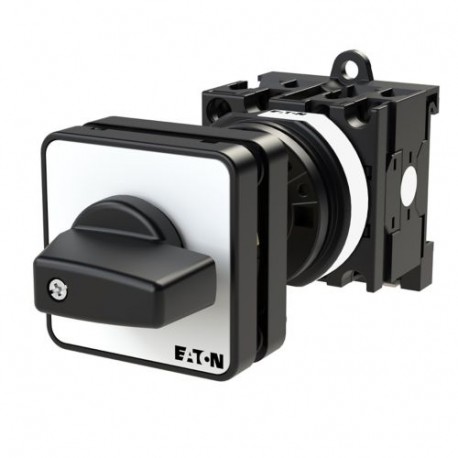

EATON - MOELLER T0-2-96/Z T0-2-96/Z 012246 Y7-12246 EATON ELECTRIC step switch for heating, Contacts: 3, 20 A, front plate: 0-3, 60 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-96/Z 012246 Y7-12246 EATON ELECTRIC step switch for heating, Contacts: 3, 20 A, front plate: 0-3, 60 °,..

T0-2-96/Z

012246

Y7-12246

EATON - MOELLER

1 Pcs.

step switch for heating, Contacts: 3, 20 A, front plate: 0-3, 60 °, maintained, rear mounting Switch steps for heating; 3-pole; 20a; rating Plate: 0-3; 60 °; Interlock; Mounting bottom panel Eaton Moeller® series T0 step switch for heating, T0, 20 A, rear mounting, 2 contact unit(s), Contacts: 3, 60 °, maintained, With 0 (Off) position, 0-3, Design number 96 Step switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 3, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-3, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller step switch, designated as T0-2-96/Z, provides multi-position manual control suited for heating systems and specialized industrial equipment load selection. These rugged switches facilitate precise incremental adjustments across electrical circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): On/Off switch
  • Number of poles (EF001391): 1
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
012246
Model Code
T0-2-96/Z
EAN
4015080122463
Product Length/Depth
28 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.134 kg
Certifications
CE
UL File No.: E36332
VDE 0660
UL
CSA File No.: 012528
CSA
IEC/EN 60947
UL 60947-4-1
CSA Class No.: 3211-05
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
IEC/EN 60204
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
