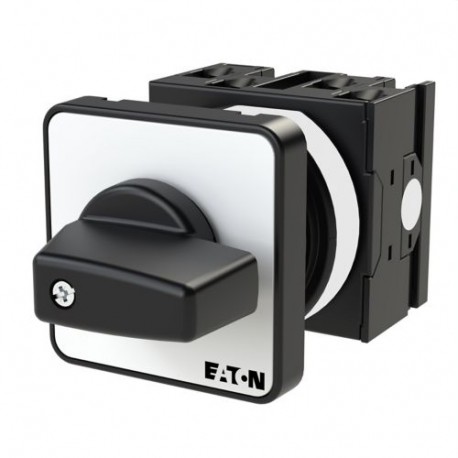

EATON - MOELLER T0-2-92/E T0-2-92/E 012219 Y7-12219 EATON ELECTRIC step switch for heating, Contacts: 3, 20 A, front plate: 0-3, 60 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-92/E 012219 Y7-12219 EATON ELECTRIC step switch for heating, Contacts: 3, 20 A, front plate: 0-3, 60 °,..

T0-2-92/E

012219

Y7-12219

EATON - MOELLER

1 Pcs.

step switch for heating, Contacts: 3, 20 A, front plate: 0-3, 60 °, maintained, flush mounting Switch steps for heating; 3-pole; 20a; rating Plate: 0-3; 60 °; Interlock; recessed Mounting Eaton Moeller® series T0 step switch for heating, T0, 20 A, flush mounting, 2 contact unit(s), Contacts: 3, 60 °, maintained, With 0 (Off) position, 0-3, Design number 92 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 3, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-3

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller step switch for heating (T0-2-92/E) is a specialized rotary selector designed to control multi-stage heating elements and thermal equipment in industrial heating systems. These switches enable precise manual adjustment of heating output levels across designated electrical circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 4
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
012219
Model Code
T0-2-92/E
EAN
4015080122197
Product Length/Depth
86 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.108 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
UL 60947-4-1
CSA File No.: 012528
VDE 0660
UL File No.: E36332
IEC/EN 60947
CSA-C22.2 No. 94
UL
CSA Class No.: 3211-05
CSA
CE
UL Category Control No.: NLRV
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
