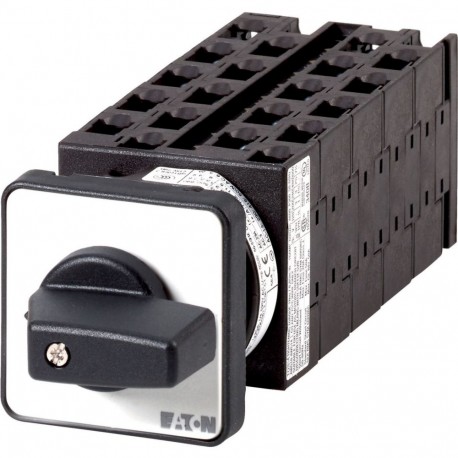

EATON - MOELLER T0-10-8478/E T0-10-8478/E 009927 Y7-9927 EATON ELECTRIC Step switches, Contacts: 20, 20 A, front plate: 1-5, 60 °, mainta.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-10-8478/E 009927 Y7-9927 EATON ELECTRIC Step switches, Contacts: 20, 20 A, front plate: 1-5, 60 °, mainta..

T0-10-8478/E

009927

Y7-9927

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 20, 20 A, front plate: 1-5, 60 °, maintained, flush mounting Step switch 20 poles 20 A Indicator plate: 1-5 60° Eaton Moeller® series T0 Step switches, T0, 20 A, flush mounting, 10 contact unit(s), Contacts: 20, 60 °, maintained, Without 0 (Off) position, 1-5, Design number 8478 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 20, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, Without 0 (Off) position, 10 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1-5

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T0-10-8478/E step switch is a heavy-duty multi-pole component designed to manage complex sequential switching operations in industrial electrical distribution systems. These devices allow operators to systematically progress through multiple distinct process phases within automated machinery.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 4
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 5
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
009927
Model Code
T0-10-8478/E
EAN
4015080099277
Product Length/Depth
162 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.274 kg
Certifications
IEC/EN 60204
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA File No.: 012528
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
CE
IEC/EN 60947
UL 60947-4-1
CSA-C22.2 No. 94
VDE 0660
IEC/EN 60947-3
UL
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
