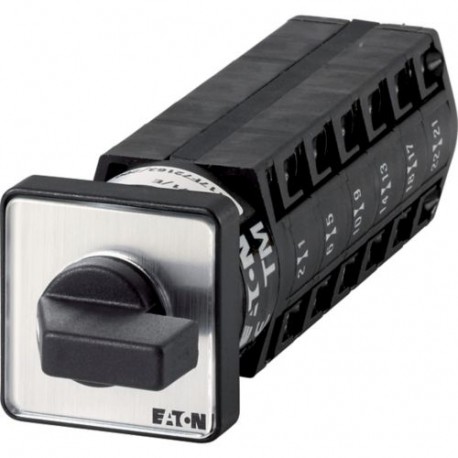

TM-6-8271/E 046402 Y7-46402 EATON ELECTRIC Step switches, Contacts: 12, 10 A, front plate: 1-4, 60 °, 4 step..

TM-6-8271/E

046402

Y7-46402

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 12, 10 A, front plate: 1-4, 60 °, 4 steps, 60°, maintained, flush mounting Step Switch 12 Pole 10 A Indicator Plate: 1-4 60° Eaton Moeller® series TM Step switches, TM, 10 A, flush mounting, 6 contact unit(s), Contacts: 12, 60 °, maintained, Without 0 (Off) position, 1-4, Design number 8271 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 12, Number of steps: 4 steps, 60°, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, Without 0 (Off) position, 6 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: 1-4

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A step switch functions as a multi-position level switch used in electrical installations to manually select between different operating levels, circuits, or resistor taps in machinery. These devices allow operators to systematically change machine configurations during active processing tasks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 3
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 4
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 30x30 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Step switch
Catalog Number
046402
Model Code
TM-6-8271/E
EAN
4015080464020
Product Length/Depth
122 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.082 kg
Certifications
UL File No.: E36332
UL Category Control No.: NLRV
UL
CE
CSA-C22.2 No. 14-05
IEC/EN 60947-3
UL 508
UL report applies to both US and Canada
CSA-C22.2 No. 94
VDE 0660
Certified by UL for use in Canada
IEC/EN 60947-5-1
IEC/EN 60947
CSA

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
