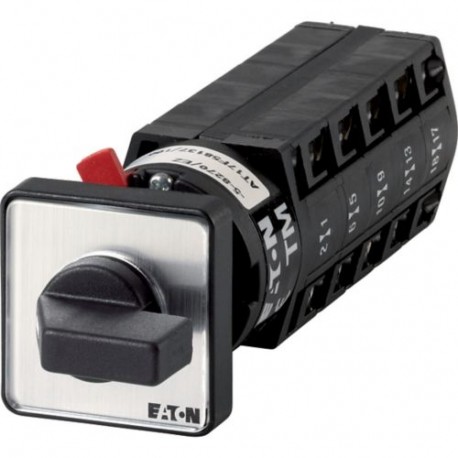

TM-5-8270/EZ 046124 Y7-46124 EATON ELECTRIC Step switches, Contacts: 9, 10 A, front plate: 1-3, 60 °, 3 step..
TM-5-8270/EZ
046124
Y7-46124
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller TM-5-8270/EZ step switches provide compact manual control for managing multi-phase circuits and progressive operational states in machinery. Engineers utilize such rotary selector components to sequence auxiliary systems or motor loads securely.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Level switch
- Number of poles (EF001391): 3
- Max. rated operation voltage Ue AC (EF007355): 500 V
- Rated permanent current Iu (EF001389): 10 A
- Number of switch positions (EF000231): 3
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 30x30 mm
More info
▲General specifications
CSA
UL 508
UL report applies to both US and Canada
IEC/EN 60947-3
IEC/EN 60947-5-1
CSA-C22.2 No. 94
VDE 0660
IEC/EN 60947
CE
UL
UL Category Control No.: NLRV
CSA-C22.2 No. 14-05
UL File No.: E36332
