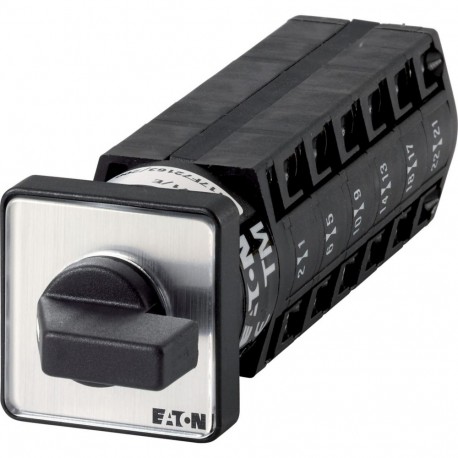

TM-6-8282/E 077251 Y7-77251 EATON ELECTRIC Step switches, Contacts: 12, 10 A, front plate: 0-4, 30 °, 4 step..
TM-6-8282/E
077251
Y7-77251
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Built for panel integration, the Eaton Moeller TM-6-8282/E functions as a versatile step switch for precise multi-stage circuit management. These components are typically deployed in industrial automation setups to govern sequential operations, heating elements, or multi-speed motor circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Level switch
- Number of poles (EF001391): 3
- Max. rated operation voltage Ue AC (EF007355): 500 V
- Rated permanent current Iu (EF001389): 10 A
- Number of switch positions (EF000231): 5
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 30x30 mm
More info
▲General specifications
IEC/EN 60947-5-1
IEC/EN 60947-3
UL File No.: E36332
CSA-C22.2 No. 94
CE
Certified by UL for use in Canada
UL 508
UL report applies to both US and Canada
VDE 0660
UL Category Control No.: NLRV
IEC/EN 60947
UL
CSA-C22.2 No. 14-05
