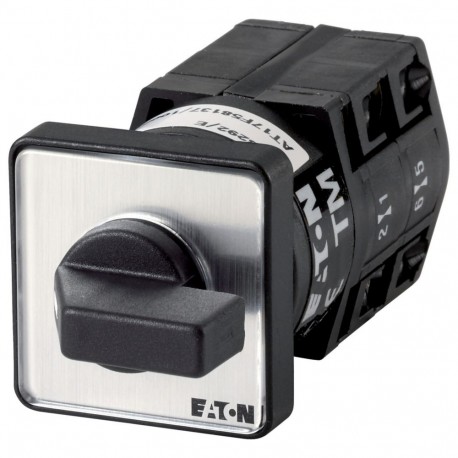

EATON - MOELLER TM-2-8311/E TM-2-8311/E 086743 Y7-86743 EATON ELECTRIC Step switches, Contacts: 3, 10 A, front plate: 0-3, 60 °, maintai.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-2-8311/E 086743 Y7-86743 EATON ELECTRIC Step switches, Contacts: 3, 10 A, front plate: 0-3, 60 °, maintai..

TM-2-8311/E

086743

Y7-86743

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 3, 10 A, front plate: 0-3, 60 °, maintained, flush mounting Step switch; 3 poles; 10 A; Indicator plate: 0-3; 60 °; Eaton Moeller® series TM Step switches, TM, 10 A, flush mounting, 2 contact unit(s), Contacts: 3, 60 °, maintained, With 0 (Off) position, 0-3, Design number 8311 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 3, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: 0-3

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller step switch provides compact rotary selection for multi-tier electrical control circuits, allowing operators to cycle through designated operational phases.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 3
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 4
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 30x30 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Step switch
Catalog Number
086743
Model Code
TM-2-8311/E
EAN
4015080867432
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.04 kg
Certifications
CE
UL 508
IEC/EN 60947-5-1
UL report applies to both US and Canada
IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
CSA-C22.2 No. 94
IEC/EN 60947-3
UL
CSA
CSA-C22.2 No. 14-05
Certified by UL for use in Canada
UL File No.: E36332
