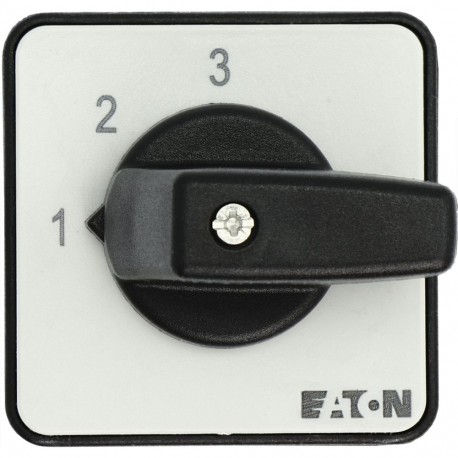

T3-5-8270/E 021524 Y7-21524 EATON ELECTRIC Step switches, Contacts: 9, 32 A, front plate: 1-3, 45 °, maintai..
T3-5-8270/E
021524
Y7-21524
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller T3-5-8270/E is a step switch applied in industrial automation for manual process staging, motor control routing, and power distribution management. These robust front-mounted components provide reliable tactile feedback during operation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Level switch
- Number of poles (EF001391): 3
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Number of switch positions (EF000231): 3
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
CSA Class No.: 3211-05
CSA File No.: 012528
CSA-C22.2 No. 94
CE
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
UL
IEC/EN 60204
UL 60947-4-1
UL File No.: E36332
CSA
