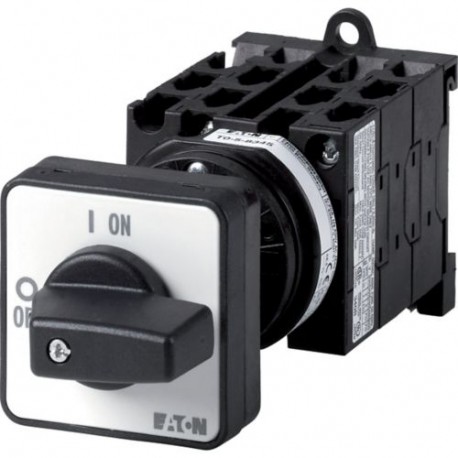

EATON - MOELLER T0-5-8281/Z T0-5-8281/Z 057836 Y7-57836 EATON ELECTRIC Step switches, Contacts: 9, 20 A, front plate: 0-3, 45 °, 3 steps.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-5-8281/Z 057836 Y7-57836 EATON ELECTRIC Step switches, Contacts: 9, 20 A, front plate: 0-3, 45 °, 3 steps..

T0-5-8281/Z

057836

Y7-57836

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 9, 20 A, front plate: 0-3, 45 °, 3 steps, 45°, maintained, rear mounting Step switch 9 poles 20 A Indicator plate: 0-3 45° Eaton Moeller® series T0 Step switches, T0, 20 A, rear mounting, 5 contact unit(s), Contacts: 9, 45 °, maintained, With 0 (Off) position, 0-3, Design number 8281

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T0-5-8281/Z step switch provides manual control selection across multiple circuits in industrial control panels and machinery.

Operators use step switches to cycle through predefined operating modes or sequence settings within an electrical installation safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T0-5-8281/Z
  • Catalogue code: 057836

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
057836
Model Code
T0-5-8281/Z
EAN
4015080578369
Product Length/Depth
156 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.211 kg
Certifications
UL Category Control No.: NLRV
VDE 0660
UL
CSA Class No.: 3211-05
CSA-C22.2 No. 94
CSA File No.: 012528
IEC/EN 60204
IEC/EN 60947
CSA
IEC/EN 60947-3
UL File No.: E36332
CE
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
