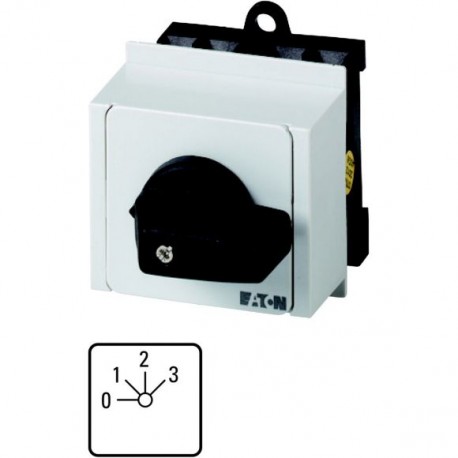

EATON - MOELLER T0-2-8311/IVS T0-2-8311/IVS 011789 Y7-11789 EATON ELECTRIC Step switches, Contacts: 3, 20 A, front plate: 0-3, 45 °, maint.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-2-8311/IVS 011789 Y7-11789 EATON ELECTRIC Step switches, Contacts: 3, 20 A, front plate: 0-3, 45 °, maint..

T0-2-8311/IVS

011789

Y7-11789

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 3, 20 A, front plate: 0-3, 45 °, maintained, service distribution board mounting Step switch 3 poles 20 A Indicator plate: 0-3 45° Eaton Moeller® series T0 Step switches, T0, 20 A, service distribution board mounting, 2 contact unit(s), Contacts: 3, 45 °, maintained, With 0 (Off) position, 0-3, Design number 8311

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Step switch
Catalog Number
011789
Model Code
T0-2-8311/IVS
EAN
4015080117896
Product Length/Depth
92 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.12 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
UL Category Control No.: NLRV
VDE 0660
UL
UL File No.: E36332
CSA
UL 60947-4-1
CSA File No.: 012528
CE
IEC/EN 60204
CSA-C22.2 No. 94
IEC/EN 60947
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
