EATON - MOELLER TM-6-8253/E TM-6-8253/E 055894 Y7-55894 EATON ELECTRIC Step switches, Contacts: 12, 10 A, front plate: 1-6, 60 °, 6 step.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-6-8253/E 055894 Y7-55894 EATON ELECTRIC Step switches, Contacts: 12, 10 A, front plate: 1-6, 60 °, 6 step..

TM-6-8253/E

055894

Y7-55894

EATON - MOELLER

1 Pcs.

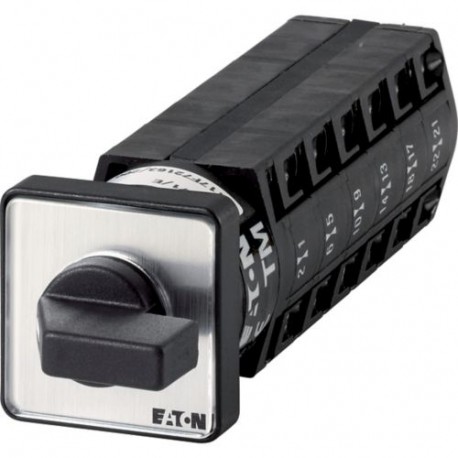

Step switches, Contacts: 12, 10 A, front plate: 1-6, 60 °, 6 steps 60°, no full rotation, maintained, flush mounting Step Switch 12 Pole 10 A Indicator Plate: 1-6 60° Eaton Moeller® series TM Step switches, TM, 10 A, flush mounting, 6 contact unit(s), Contacts: 12, 60 °, maintained, Without 0 (Off) position, 1-6, Design number 8253 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 12, Number of steps: 6 steps 60°, no full rotation, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, Without 0 (Off) position, 6 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: 1-6

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller step switch, part number TM-6-8253/E, serves as a compact multi-position selector designed for precision phase and mode switching in control circuitry. Engineers utilize these miniaturized rotary switches within tight panel spaces to sequence operational steps safely and efficiently.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 6
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 30x30 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Step switch
Catalog Number
055894
Model Code
TM-6-8253/E
EAN
4015080558941
Product Length/Depth
122 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.082 kg
Certifications
UL report applies to both US and Canada
UL File No.: E36332
CSA-C22.2 No. 14-05
VDE 0660
CSA-C22.2 No. 94
CSA
CE
Certified by UL for use in Canada
IEC/EN 60947-5-1
UL 508
IEC/EN 60947
UL Category Control No.: NLRV
IEC/EN 60947-3
UL

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
