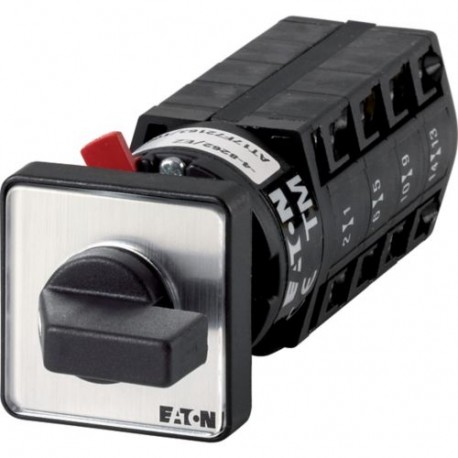

TM-4-8262/EZ 046120 Y7-46120 EATON ELECTRIC Step switches, Contacts: 8, 10 A, front plate: 0-4, 30 °, 4 step..

TM-4-8262/EZ

046120

Y7-46120

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 8, 10 A, front plate: 0-4, 30 °, 4 steps, 30°, maintained, centre mounting Step switch 8 poles 10 A Indicator plate: 0-4 30° Eaton Moeller® series TM Step switches, TM, 10 A, centre mounting, 4 contact unit(s), Contacts: 8, 30 °, maintained, With 0 (Off) position, 0-4, Design number 8262 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 8, Number of steps: 4 steps, 30°, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 30 °, Switching performance: maintained, With 0 (Off) position, 4 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: 0-4

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller step switch (part number TM-4-8262/EZ) functions as a manual control device designed to sequence multiple circuits through distinct operating positions in industrial machinery. These components provide reliable operator control for multi-step processes on control panels and machine interfaces.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 5
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 30x30 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Step switch
Catalog Number
046120
Model Code
TM-4-8262/EZ
EAN
4015080461203
Product Length/Depth
110 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.063 kg
Certifications
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94
IEC/EN 60947
UL
VDE 0660
IEC/EN 60947-3
IEC/EN 60947-5-1
UL Category Control No.: NLRV
CE
Certified by UL for use in Canada
CSA
UL report applies to both US and Canada
UL File No.: E36332
UL 508

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
